SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads

SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads

SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads
SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads

Large Image :  SS Round Tube Polishing Machine Mirror And Shinny Finishing Customized Polishing Heads Get Best Price

Product Details:

Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-P1010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export package
Delivery Time: 25working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets per month
Detailed Product Description
Name: Stainless Steel Round Tube Polishing Machine Finishing: Mirror And Shinny Finishing
Use For: Round Tube Or Pipe
High Light:

tube buffing machine

,

pipe surface polisher

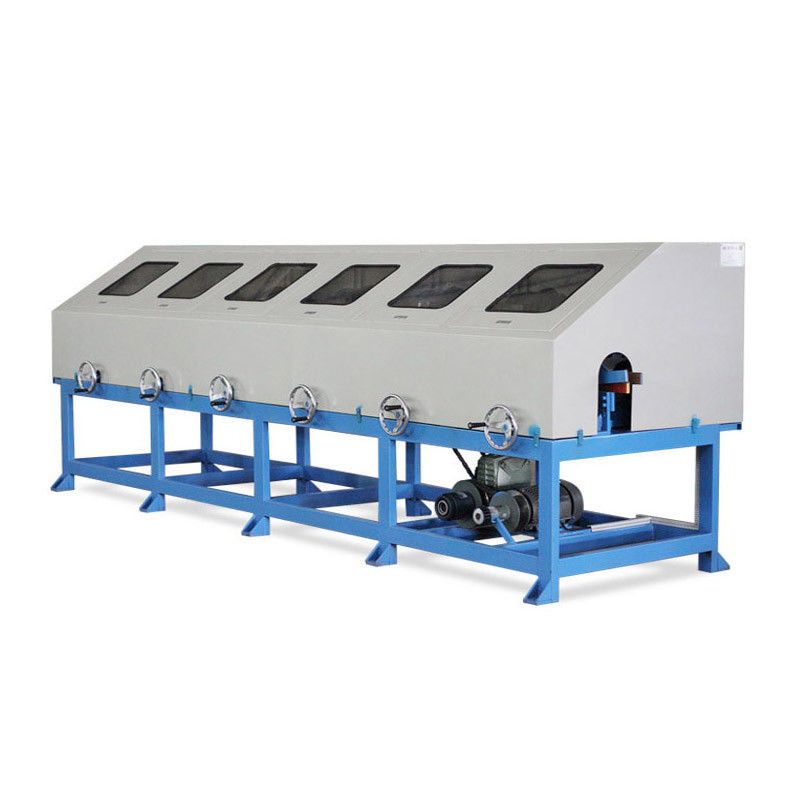

Stainless steel round tube polishing machine









Stainless steel round tube polishing machine shown as below for polishing straight round tube. The tube to be polished can have tapers or varying diameters.but must be straight. This type tube polishing machine can use flap wheel for grinding, sisal wheel for hard buffing and cloth wheel for soft buffing.Automatic stainless steel tube buffing machine include 3 sections: tube loading section, main tube buffing machine section and unloading section.

  • Specification

Stainless steel round tube polishing machine
Model JZ-P10010
Motor 4KW*6 (Motor brand can be your request)
Voltage 380V,50/60HZ,3Phase
Spindle speed 2300r/min
Conveyor speed 0-15m/min
Width of spindle 200/ 300mm
Tube OD 10-50mm,20-70mm,30-100mm (round tube)
Polishing heads 10 heads (can be customized)
Consumables Flap wheel,Nylon wheel, Sisal wheel, Cloth wheel, Cotton wheel
ROHS Environment protection completely with dust cover





Details section of  stainless steel round tube buffing machine

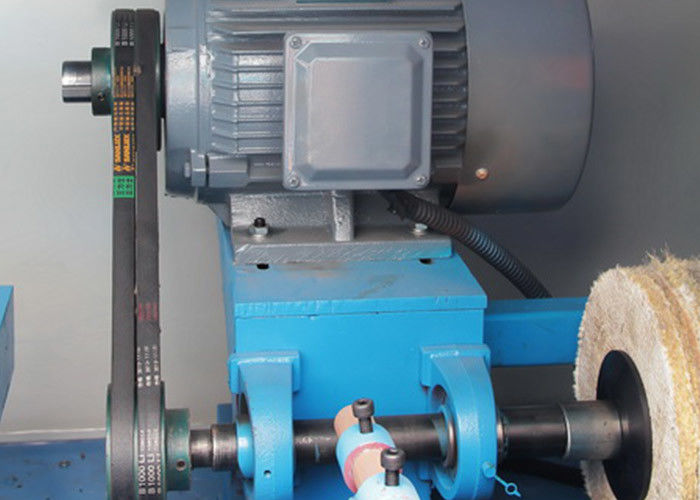

  • Main machine section

steel pipe buffing machine

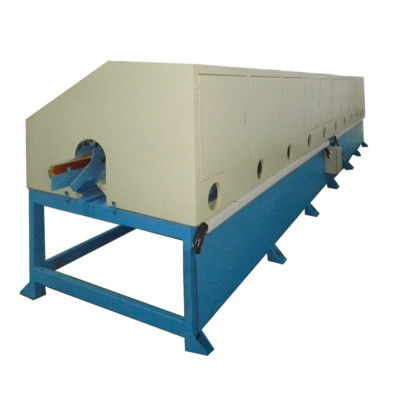

  • Loading/Unloading section



automatic stainless steel pipe polishing machine



  • Consumables usage



How to use consumables to get needed finish by this type tube polishing machine?

Manufacturing costs,timelines and right polished finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of buffing process that ultimately determine your success with 10 levels of polishing range from grinding to 100% 8K mirror finishing.We can use right consumables and polishing process to achieve a profitable cost and get right polished finishing as you need. Details of 6 levels as below:

  1. Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.
  2. Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.
  3. Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.
  4. Buffed finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
  5. Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel, common cloth wheel.
  6. Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel, at last step use cotton wheels to get 100% 8K Mirror finishing.
  • Sisal wheel series

sisal

  • Cloth wheel series

coth wheel

  • Abrasive series

abrasive


  • More information, please contact us
