High Performance CNC Polishing Machine For Stainless Steel Square Cookware

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

High Performance CNC Polishing Machine For Stainless Steel Square Cookware

China High Performance CNC Polishing Machine For Stainless Steel Square Cookware supplier
High Performance CNC Polishing Machine For Stainless Steel Square Cookware supplier High Performance CNC Polishing Machine For Stainless Steel Square Cookware supplier High Performance CNC Polishing Machine For Stainless Steel Square Cookware supplier High Performance CNC Polishing Machine For Stainless Steel Square Cookware supplier

Large Image :  High Performance CNC Polishing Machine For Stainless Steel Square Cookware

Product Details:

Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-CNC005

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 20GP container
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Stainless Steel Square Cookware CNC Polishing Machine Use For: Square Shape Metal Items
Finishing: Mirror Controller: CNC Program

CNC polishing machine for Stainless steel square cookware





  • Product Description



Stainless steel square cookware CNC polishing machine is mainly for stainless steel square/rectangular or round shaped products, like the round, oval shape and the side of square products (specially like sink, pot) polishing. The control system of this machine adopts mechanical system, CNC system, servo system, so high performance, stability, and easy to operate, new design and elegant appearance. The features of automatic cnc buffing machine are below:

  1. suitable for buffing stainless steel arc products, like round, oval or irregular shape products, such as sink
  2. the polishing speed can be adjusted to meet work piece types
  3. equipped with automatic spray gun, in case cloth wheel is worm out, it may automatically compensate pressure as desired
  4. high production, requires only one operator to operate the machine (one machine can save 10 labors)



  • Specification





Stainless steel square cookware CNC polishing machine
Total power 8.65 KW
Voltage 380V,50/60HZ,3Phase
Servo motor X Y axis: 1KW Z axis: 0.75KW
Swing speed 90/min
Polishing wheel number one
Polishing wheel size ¢300*100 mm
Air pressure 0.5-0.8Mpa
Working temperature 10°- 70°
Lifting travel of polishing wheel 300 mm
Control system CNC program
Spray wax device automtic spray wax
Machine size L 2200*W 1800* H 2300 mm
ROHS Environment protection completely with dust cover



  • Machine working process

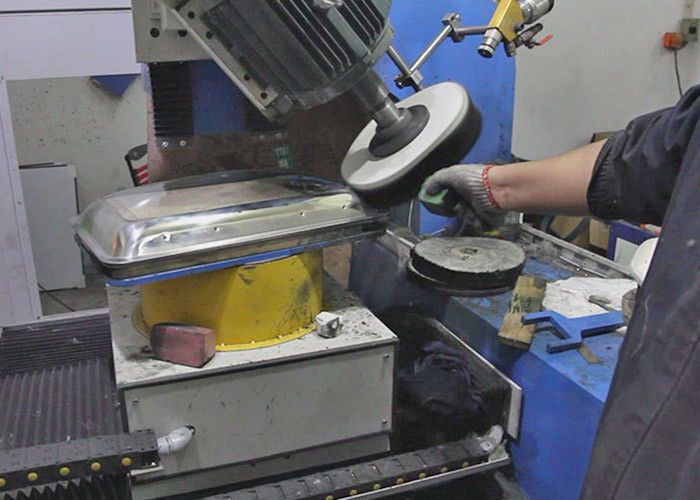

automatic cnc buffing machine for stainless steel arc shaped products

Process one: start the machine, and the buffing wheel rotation. The buffing head can be adjusted to the appropriate angle of the product. (shown in ① ②)

Process two: the workbench drives the fixture rotating to the start side of under polished product, the polishing wheel works in the direction shown by the red line. (shown in ③ ⑥)

Process three: the workbench drives products to contact with the buffing wheel for buffing grinding. The polished surface is sequentially polished in the direction indicated by the red line during the buffing process, the self-spraying waxing device is used to spray wax on the buffing wheel (② ⑤)

Note: the machine head is fixed during the buffing process, all the movements are done by the workbench.

  • Application

automatic cnc buffing machine for metal arc products

The machine is mainly for round, oval shape and the side of square products (such as sink) polishing.



  • The advantages



  1. Stainless steel square cookware CNC polishing machine is designed by JINZHU, automatic CNC operation, and the     polishing effect achieved without polishing static light traces.
  2. The core components of the CNC polishing machine are used the well-known brand       accessories (Omron, TEDA inverter, SNK bearings).
  3. The CNC polishing machine head with oblique suspension design, the workbench can 360-degree rotate, the machine is perfect for polishing the side of products.
  4. The CNC polishing machine is high automatic, only need people to start the machine, loading  and unloading the products.

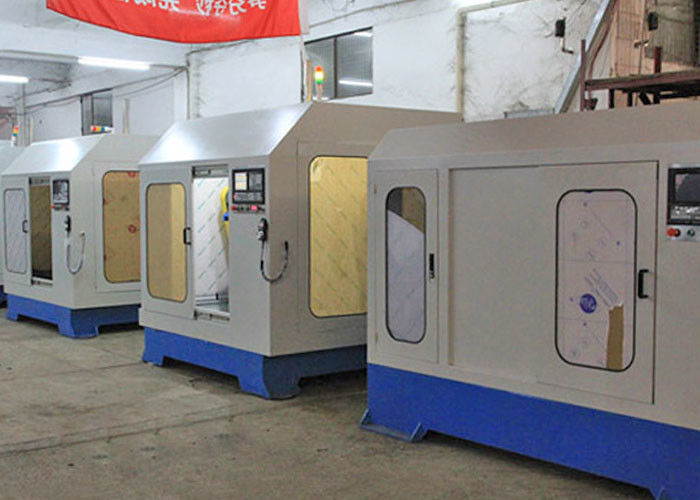

automatic cnc buffing machine for stainless steel arc shaped products



  • Consumables usage



Manufacturing costs, timelines and right polished finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of polishing process that ultimately determine your success with right polishing method. Most important point for finishing as below:

  • The linear speed of polishing wheels (adjust by inverter)
  • Rotary table revolution turning speed (adjust by inverter)
  • Workpiece rotation speed (adjustable by inverter)
  • Details for polishing consumables picture as below( you can choose right consumables according to the finishing you need)

rotary stainless steel polishing and buffing equipment





  • More information, please contact directly
