Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet

Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet

Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet
Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet

Large Image :  Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: JINZHU
Certification: CE
Model Number: JZ-L6011-B-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export package
Delivery Time: 5-25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Name: Stainless Steel Abrasive Belt Flat Sheet Grinding Sanding Machine Abrasive Belt Size: 2100*150mm
Max.width Of Workpiece: 150mm Use For: Flat Items Or Square Tube/pipe Grinding
High Light:

metal sander machine

,

sander polisher machine

Product Description



Stainless steel abrasive belt flat sheet grinding sanding machine is designed for grinding, polishing and satin finishing various metal parts, like metal plates, profiles, square or rectangular section tubes, tools, iron bases, door plates, locks, etc. It also can grinding many kinds of materials like: stainless steel ,copper, aluminum, brass alloy etc. The features of this plate grinding sanding machine as below:

  • can be supplied with several belt grinding heads from one head to six heads (depending on the grinding effect you required)
  • wet type or dry type working condition
  • can be installed abrasive wheel to get satin grinding or hairline finishing
  • continuously working time more than 10 years and safety operation
  • less Maintenance rate than common machine
  • because special design, So less deformation rate after polishing (almost less than 2%)



Specification



Stainless steel abrasive belt flat sheet grinding sanding machine
Model JZ-L6011-B
Main motor 5.5kw *4
Conveyor motor 0.75kw
Worktable size 150mm( can be customized width according to you needed)
Input speed 0–8 m/min
Spindle speed 1440 r/min
Belt size 2100 mm*150 mm
Voltage 380 V,50/60 HZ,3 Phase
Mechanical operation PLC control
Working condition wet type or dry type
Remark with dust cover

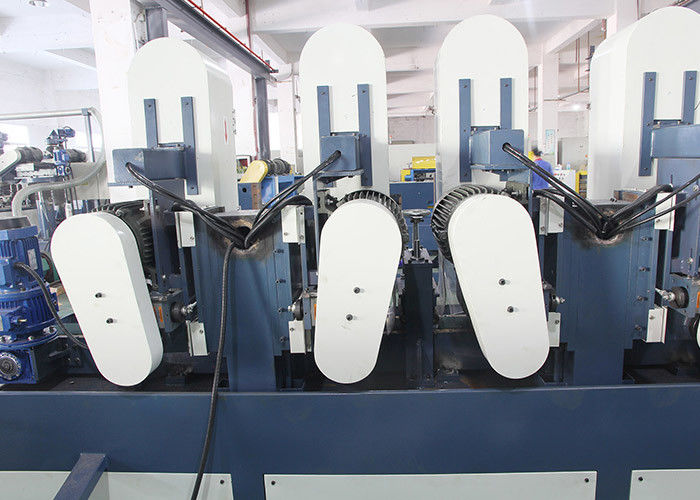

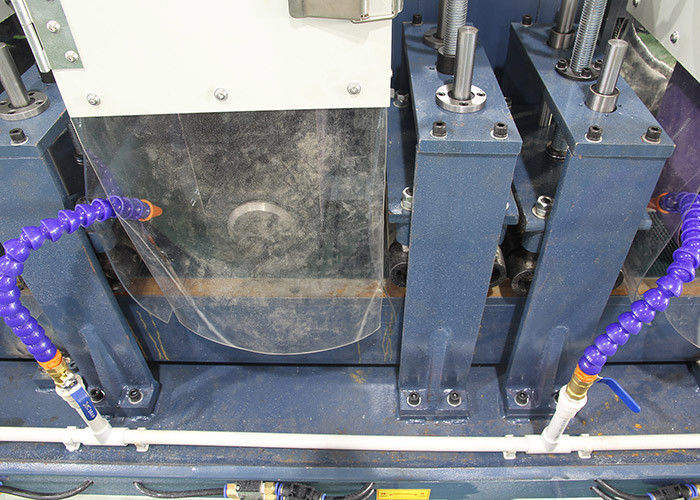

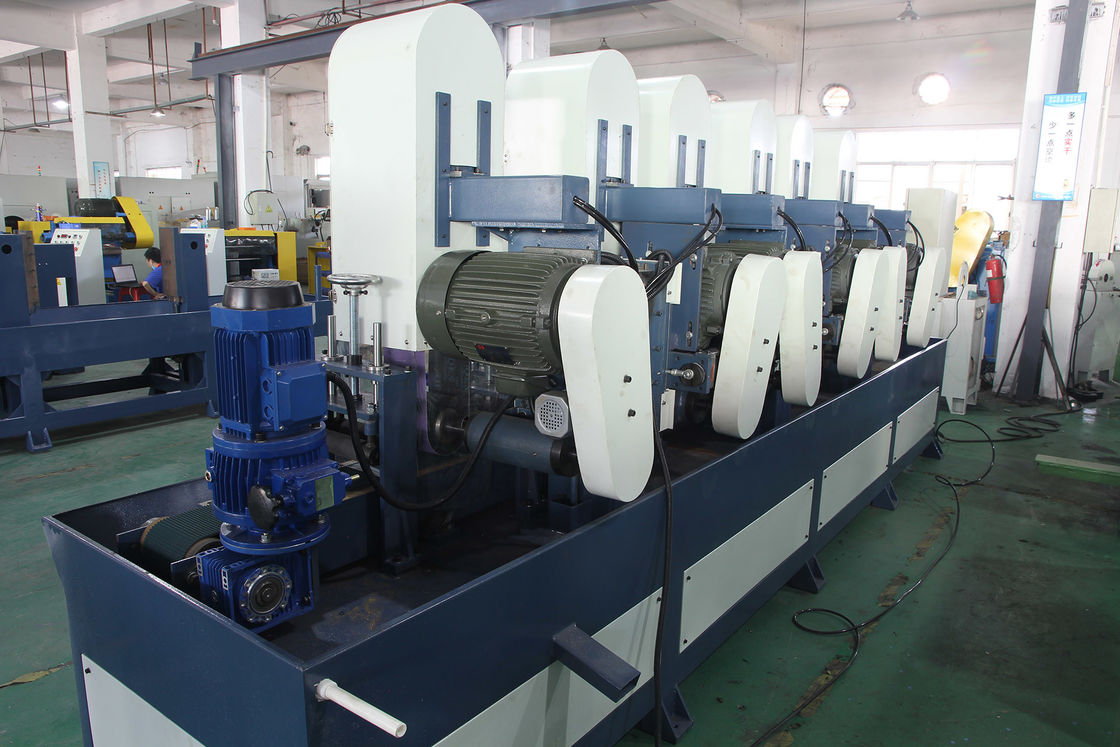

Detail image



abrasive belt flat plate grinding machine





Instructions of operating Stainless steel abrasive belt flat plate grinding sanding machine





  • Step one, turn on the power switch to see power indicator whether there is electricity.
  • Step two, shake the hand wheel lift table, to lift the working table to a certain height, the space around the workpiece is higher than 2 MM.
  • Step three, press the Start button to start the belt conveyor, adjust the distance between the workpiece and the belt.
  • Step four, start pump and spindle switch, so that grinding is processing between the belt and the workpiece.
  • Step five, watch the workpiece surface quality meets the requirements, if not, please use the hand wheel to move slowly adjusting the distance between the workpiece and the sanding belt.
  • Step six, press the emergency stop button if there is something wrong in the work
  • Step seven, after work, shut the power, clean machinery and fill lubrication to the regularly moving parts



Consumables usage



Stainless Steel Abrasive Belt Grinding Sanding Machine For Flat Sheet 1
