Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube

Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube
Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube

Large Image :  Intelligent 10 Heads Industrial Polishing Machine For Stainless Steel Tube

Product Details:
Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-P1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard zxport package
Delivery Time: 15-20 work days
Detailed Product Description
Name: Stainless Steel Tube Polishing Machine
High Light:

tube buffing machine

,

pipe surface polisher

10 heads round stainless steel tube polishing



Product Description

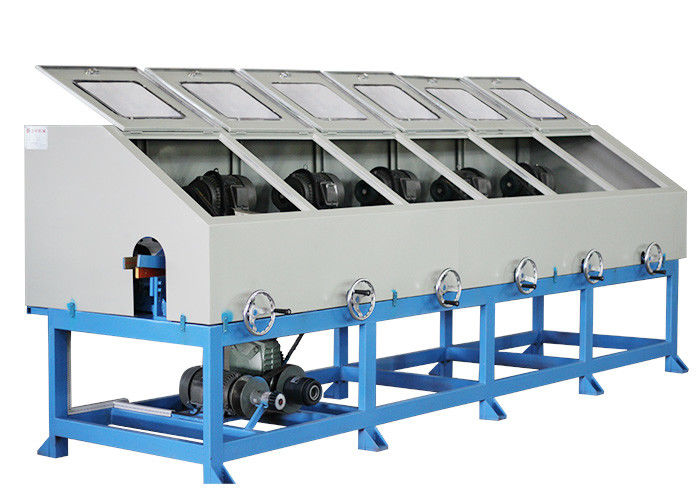

10 heads round stainless steel tube polishing machine shown as below for polishing straight round tube. The tube to be polished can have tapers or varying diameters.but must be straight. Stainless steel tube polishing machine includes 10 sections: tube loading section, Main stainless steel tube polishing machine section and Unloading section. And it can be customized from 1 head to 10 heads. The features of the stainless steel tube polishing machine are:

  • High profitability and high production
  • More than 10 years usage life and safety operation
  • Intelligent and humane designation
  • Precision finishing without deformation after polishing
  • Higher production can up to 15m/min with 8K mirror finishing. Common machine only can achieve 8m/min

Specification of 3 heads round stainless steel tube polishing machine

10 heads round stainless steel tube polishing machine
Model JZ-P1010
Motor 4KW*10 (Motor brand can be your request)
Voltage 380V,50/60HZ,3Phase
Spindle speed 2300r/min
Conveyor speed 0-12m/min
Mechanical contorl PLC
Tube OD 10-100mm (round tube)
Consumables Flap wheel,Nylon wheel, Sisal wheel, Cloth wheel, Cotton wheel
Consumables Size OD300mm/250mm*ID32mm
ROHS Environment protection completely with dust cover

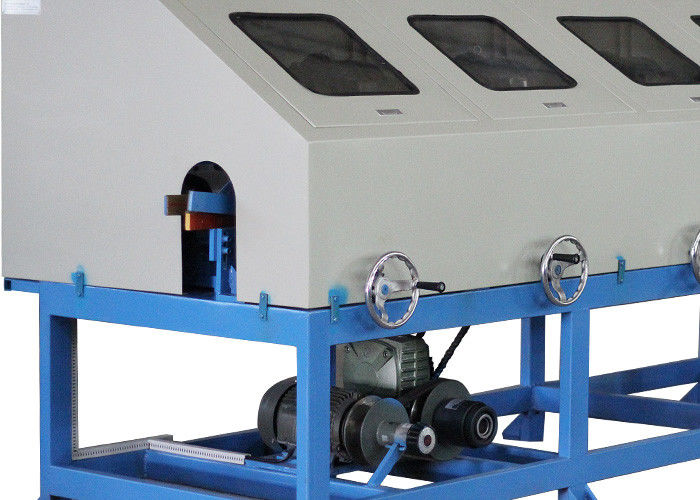

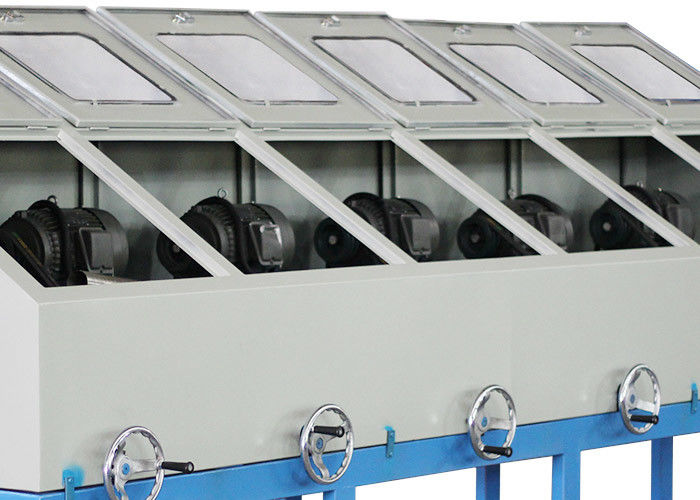

Details section of 10 heads round stainless steel tube polishing machine

Consumables usage

How to use consumables to get needed finish by this type 10 heads round stainless steel tube polishing machine?

Manufacturing costs,timelines and right polished finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of polishing process that ultimately determine your success with 6 levels of polishing range from grinding to 100% 8K mirror finishing. We can use right consumables and polishing process to achieve a profitable cost and get right polished finishing as you need.Details of 6 levels as below:

  1. Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.
  2. Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.
  3. Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.
  4. Buffed finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
  5. Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel ,common cloth wheel
  6. Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,at last step use cotton wheels to get 100% 8K mirror finishing.

Picture of consumables3 heads round stainless steel tube polishing machine

The machine working video
