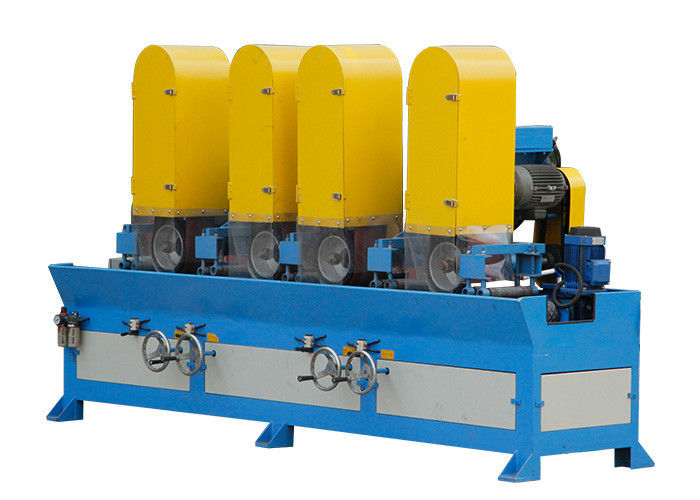

Large Image :  Automatic Flat Surface Industrial Grinding Machine With High Precision

Product Details:

Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-P1006

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: standard xzport package
Delivery Time: 15-20 days
Supply Ability: 4 sets per month
Contact Now
Detailed Product Description

automatic precision flat surface grinding machine



Product Description

Automatic precision flat surface grinding machine is for various metal parts, like metal plates, profiles, square or rectangular section tubes, tools, iron bases, door plates, locks and etc grinding, polishing and satin finishing. The features of this flat surface grinding machine are below:

  • can be supplied with several belt grinding heads from one head to six heads (depending on the grinding effect you required)
  • wet type or dry type working condition
  • can be installed abrasive wheel to get satin grinding or hairline finishing
  • continuously working time more than 10 years and safety operation
  • less Maintenance rate than common machine
  • because special design, So less deformation rate after polishing (almost less than 2%)

Specification of automatic precision flat surface grinding machine

automatic precision flat surface grinding machine
Model JZ-L6011-B
Main motor 5.5kw *4
Conveyor motor 0.75kw
Worktable size 150mm can be customized
Input speed 0–8 m/min
Spindle speed 1440 r/min
Belt size 2100 mm*150 mm
Voltage 380 V,50/60 HZ,3 Phase
Mechanical operation PLC control
Working condition wet type or dry type
Remark with dust cover

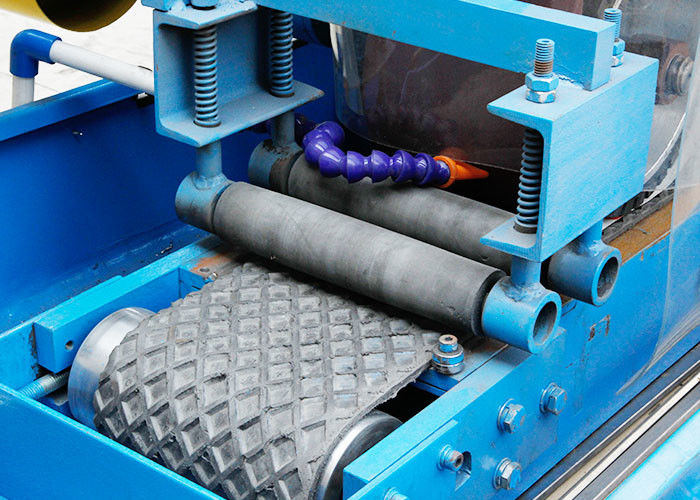

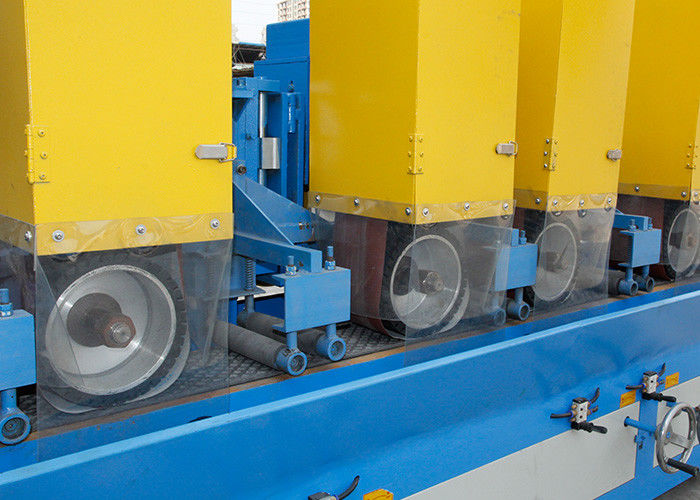

Detail image of automatic precision flat surface grinding machine

automatic precision flat surface grinding machine



The application trend of flat surface grinding machine

Noteworthy,Manufacturing costs,timeless and right polishing finishing are always under tight scrutiny since last 20 years.because competitive economy,so those points almost become key point to affect your enterprise’s development fate.Hence how to solve this problems ? please check approximately comparative date as below Echart. But that is not so accurate date.

ACCURATE CALCULATION

Consumables usage

how to use consumables to get needed finish by this flat surface grinding machine?

First of all, we can give you options for every point of polishing process, seems like 6 levels of polishing range from grinding to 100% mirror finishing. Also,we will guide you for how to use right consumables and polishing process to achieve a profitable cost and get right polished finishing as you need. In conclusion 6 levels of polishing process as below:

  • Grinding finish, use 60#-80# grit abrasive belt or flap wheels.
  • Brushed finish, use 120#-180# grit abrasive belt or flap wheels.
  • Sanitary finish,use 180#-240# grit abrasive belt or flap wheels.
  • Buffed finish,use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
  • Glossy finish, use 400#-600# grit abrasive belt or flap wheels, sisal wheel ,common cloth wheel
  • Mirror finish, use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,finally,last step use cotton wheels to get 100% 8K mirror finishing.automatic precision flat surface grinding machine
