| Waxing Device: | Automatic Waxing | Spindle Speed: | 3000r/min |
|---|---|---|---|
| Work Position: | 8-16 | Voltage: | 380V-50hz |
| Consumable Swing Range: | 0~40mm | Total Power: | 8.32kw |
| Turntable Interval Time: | 5~20S | Consumable Specifications: | Φ250*50mm |
| High Light: | High Precision Rotary Table Grinding Machine,Precision Machining rotary table surface grinder,40mm rotary table surface grinder |
||

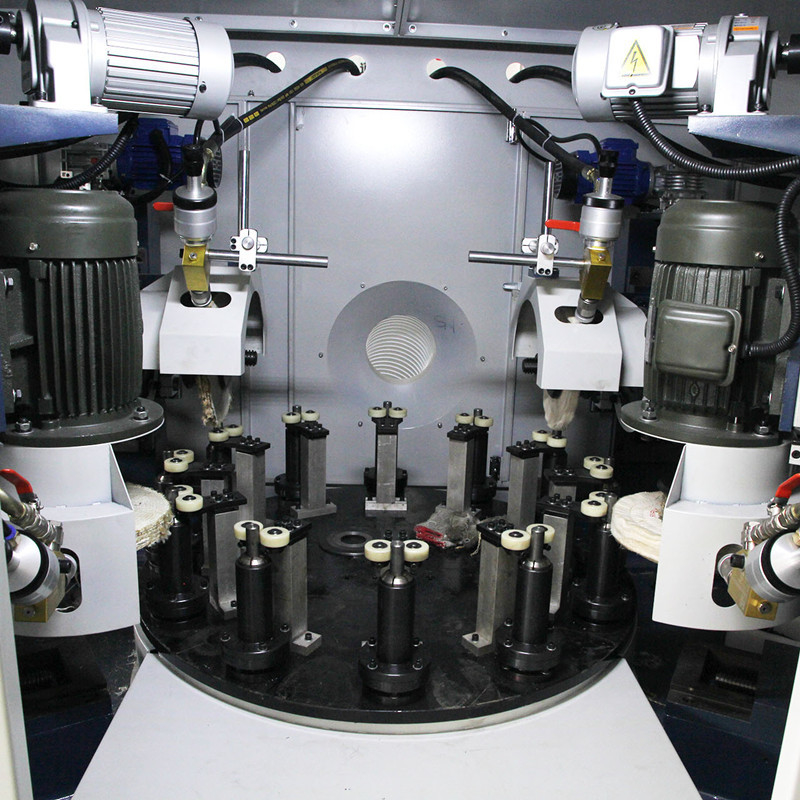

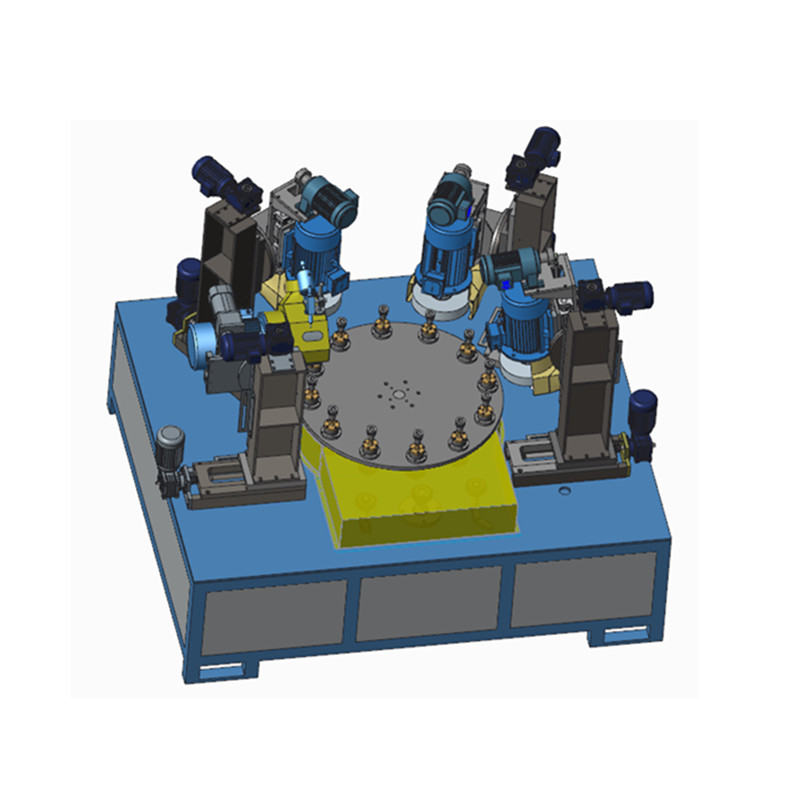

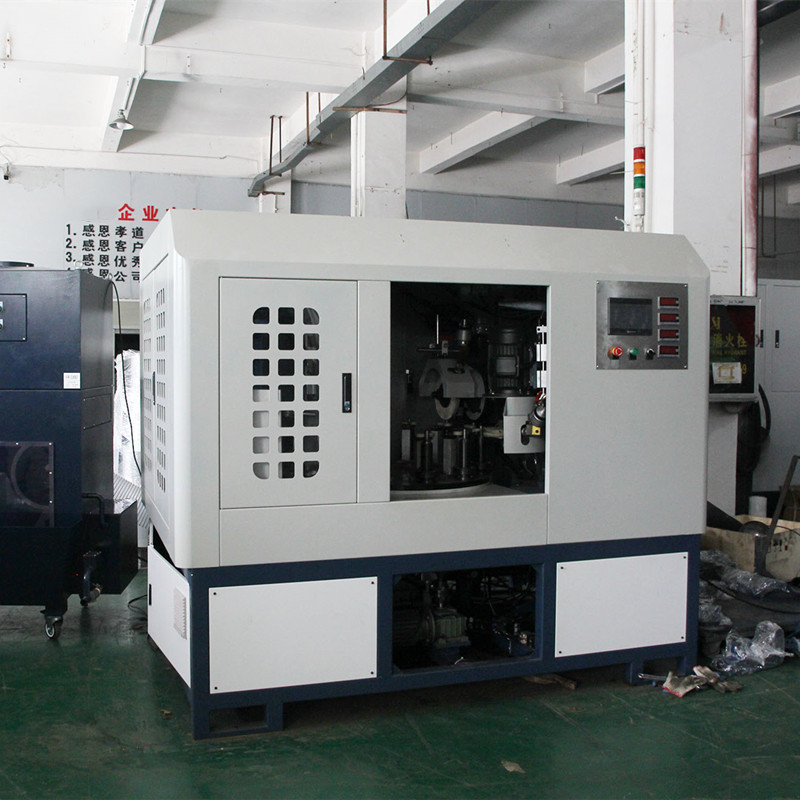

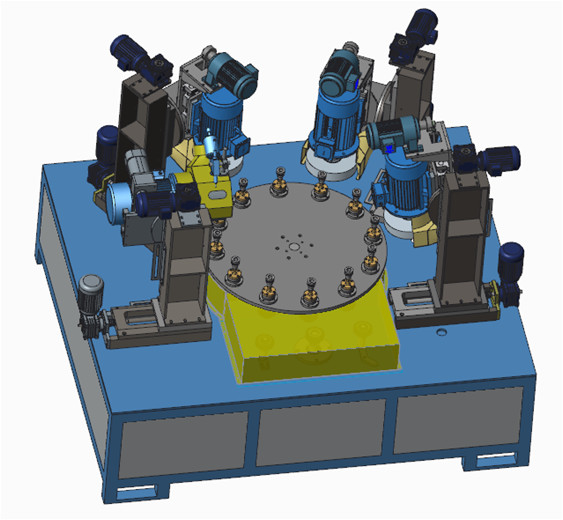

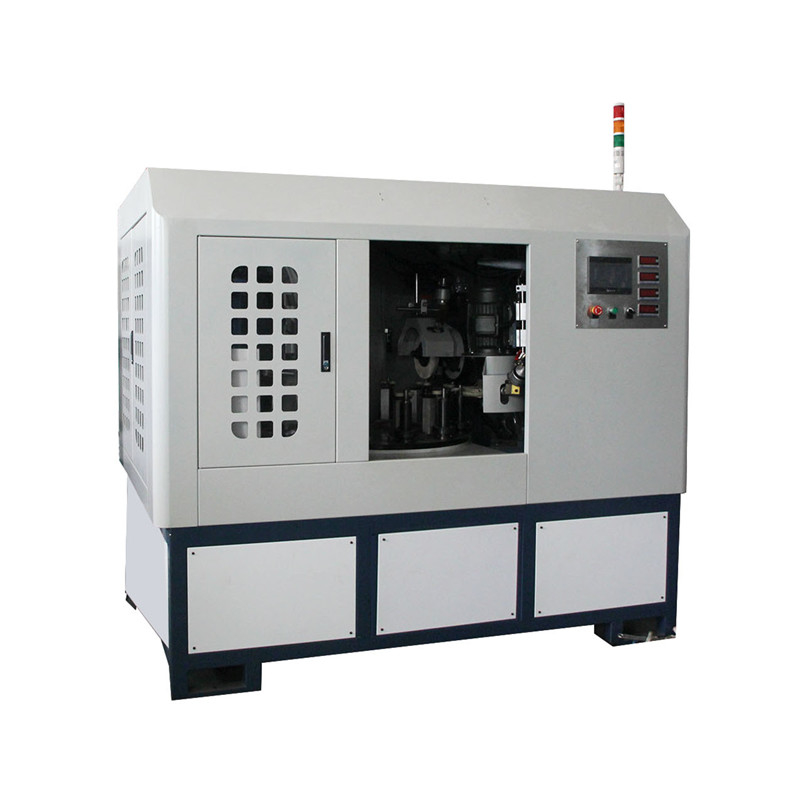

The Rotary Table Grinding Machine is an advanced grinding system with a rotating table. It features a total power of 8.32kw, a consumables up and down stroke, spindle speed up to 3000r/min, and consumable specifications of Φ250*50mm. The machine is capable of working on 8-16 positions with table rotary grinding system, making it an ideal choice for all your rotating table grinder requirements.
| Technical Parameter | Value |
|---|---|
| Main Power | 3kw |
| Total Power | 8.32kw |
| Air Press | 0.55MPa |
| Voltage | 380V-50hz |
| Spindle Speed | 3000r/min |
| Waxing Device | Automatic Waxing |
| Consumable Specifications | Φ250*50mm |
| Consumable Swing Range | 0~40mm |
| Consumables Up and Down Stroke | Consumables Up And Down Stroke |
| Work Position | 8-16 |
The Rotary Table Grinding Machine manufactured by JINZHU, with model number YP0012, is designed and produced in China. It is able to work in 8-16 positions with a main power of 3kw and total power of 8.32kw. The consumable specifications are Φ250*50mm and the air pressure required is 0.55MPa. This machine is ideal for medium-sized and large-scale grinding work that requires a high degree of precision. It provides a stable and reliable operation, and can adjust the rotational speed automatically, making it very suitable for grinding operations. Furthermore, it can be widely used in industries such as automobile, aerospace, shipbuilding, and precision machinery manufacturing, and is highly valued for its excellent precision and high efficiency.
JINZHU YP0012 model Table Rotary Grinding Machine is a rotating table grinding system with turntable interval time from 5 to 20 seconds, and voltage of 380V-50hz. It also offers automatic waxing device and a total power of 8.32kw, with a spindle speed of 3000r/min.
If you need a customized Table Rotary Grinding Machine, JINZHU YP0012 is the best choice for you.
Our team of dedicated technicians are available to provide technical support and service for Rotary Table Grinding Machine.
We provide service for installation, maintenance, troubleshooting, parts replacement and repair.
We also offer phone and email support, as well as on-site visits for more complex issues. Our technicians are knowledgeable and highly experienced in fixing problems with Rotary Table Grinding Machines.
If you have any questions or need assistance, please don’t hesitate to contact us. Our team is here to help.
Packaging and Shipping for the Rotary Table Grinding Machine:
1. To ensure the Rotary Table Grinding Machine is safely delivered to the customer, we will package it in a wooden box with foam lining for added protection.
2. The Rotary Table Grinding Machine will be shipped via air freight, and the customer will be provided with tracking information once the shipment is dispatched.
