Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine

Certification
China Dongguan Jinzhu Machinery Equipment Co., Ltd. certification
China Dongguan Jinzhu Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

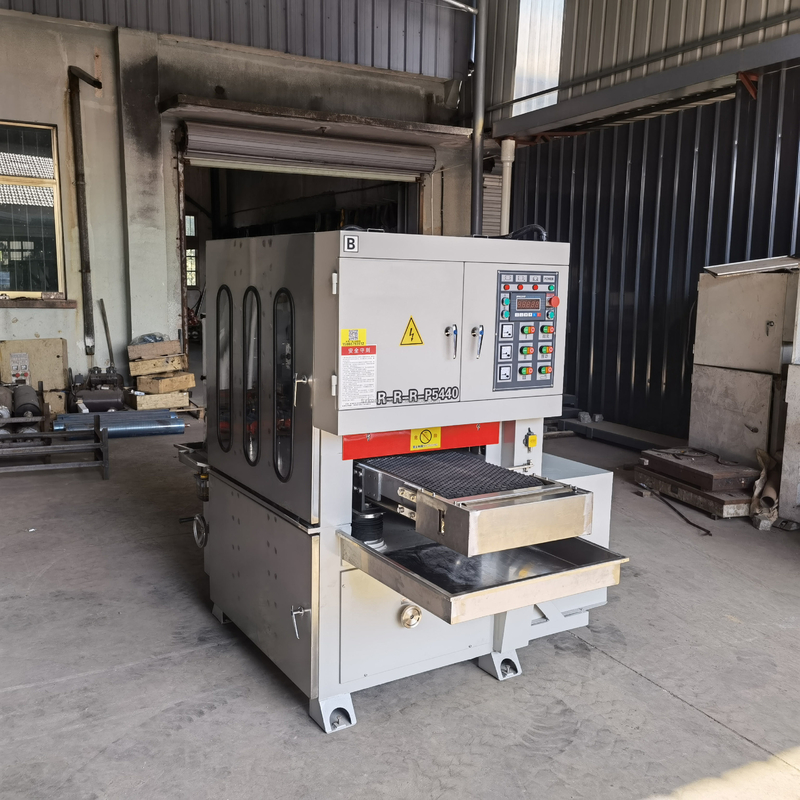

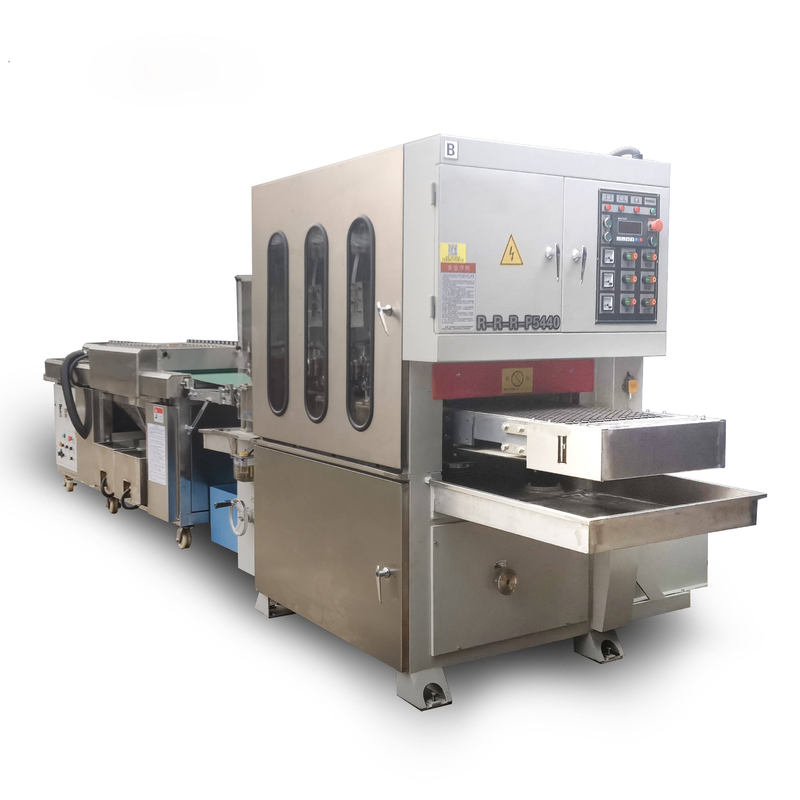

Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine

Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine

Large Image :  Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $12,000.00/sets
Packaging Details: Standard Export package
Detailed Product Description
Core Components: Motor, PLC Voltage: 380V
Power: 14.87 Dimension(L*W*H): 2.7*1.5*1.8
Weight: 1800, 800KG Year: 2022
Warranty: 1 Year, 1 Year Key Selling Points: Easy To Operate
Applicable Industries: Machinery Repair Shops Showroom Location: None
High Light:

Plane Polishing Wide Belt Sander

,

380V Wide Belt Sander

,

PLC Control Metal Sanding Machine

Stainless Steel Plate Sander Water Grinding Plane Polishing Machine Wide Belt Sander
Product Description
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 0

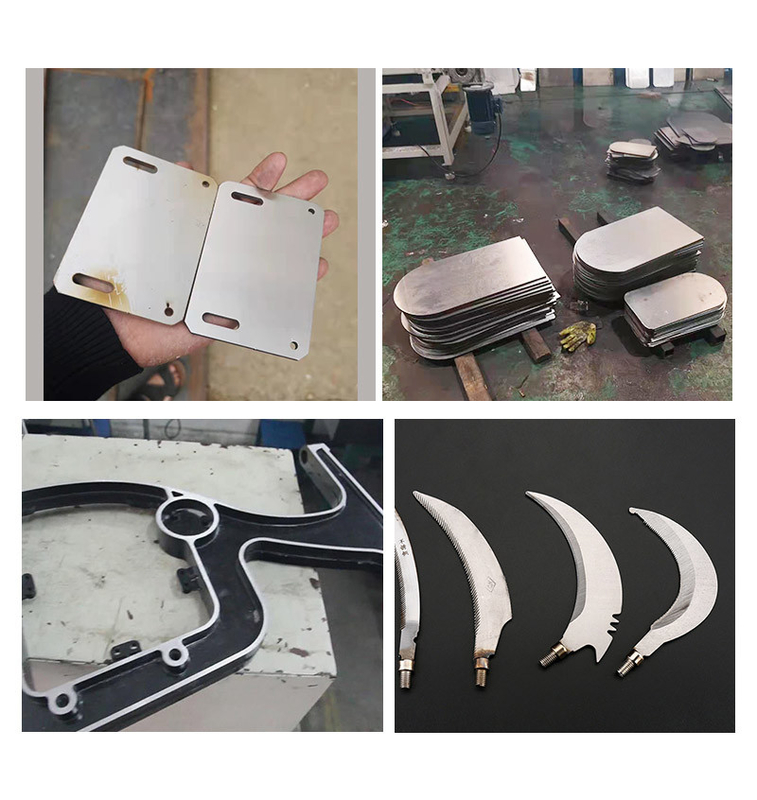

1. Main functions R-400 series models are metal water mill wire drawing equipment. This equipment is suitable for stainless steel, iron plate, copper plate, hand saw, scissors, garden tools, etc. According to the different surface requirements of the workpiece, different meshes and polishing wheels can be adjusted and selected for surface polishing and wire drawing. At the same time, it has the function of dry throwing and deburring: it is mainly used to deal with deburring, workpiece edge, hole deburring effect, beat the workpiece surface, make the contour edges around the workpiece surface and in the hole smooth and round, and realize the wire drawing and deburring of the metal sheet surface. Oxide skin, polishing and other processing. The burrs generated in the process of punching, shearing, laser cutting, plasma cutting, etc. can be removed in one and all directions, and the processing process is safe and reliable, so that the workpiece can achieve perfect results.
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 1
2. Introduction to the principle 2.1. Principle of working structure The deburring mechanism of this equipment is a wide-width abrasive belt structure, and the abrasive belt mechanism is arranged in a wide width and longitudinal direction. It adopts our patented lifting and belt swing mechanism, which can easily perform high-precision wire drawing on the surface of the workpiece. At the same time, a polishing wheel can be added for fine polishing and wire drawing. The polishing wheel can be lifted and moved laterally. 2.2. The principle of fixing and conveying mechanism A. It is fixed by pressing roller and conveyed by conveyor belt. The conveying speed can be adjusted by frequency conversion. B. The permanent magnet table is used to absorb iron, and the conveyor belt feeds the material, and the conveying speed can be adjusted by frequency conversion.
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 2
Specification
item
value
Condition
New
Inlet Diameter
40-400
Outlet Diameter
40-400
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor, PLC
Place of Origin
China

Guangdong
Brand Name
JINZHU
Voltage
380V
Power
14.87
Dimension(L*W*H)
2.7*1.5*1.8
Weight
1800
Year
2022
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Machinery Repair Shops
Showroom Location
None
After-sales Service Provided
Online Support
Product Name
Automatic Wire Drawing Machine
Drawing material
Stainless Steel Wire
Usage
Metal Wire Drawing
Name
Wire Drawing Mchine
Application
Wire Drawing Process
Warranty
1 Year
Weight
800KG
Suitable material
Metal Wire
Function
Mechanical Wire Descaling Machine
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 3
Packing & Delivery
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 4
Stainless Steel Plate Wide Belt Sander Water Grinding Plane Polishing Machine 5

No.1: After hot rolling, annealing, pickling and descaling. The surface of the treated steel sheet is a dull surface, somewhat rough.

No.2D: It is better than N0.1, and it is also a dull surface. After cold rolling, annealing, descaling, and finally light rolling with rough rolls.

No.2B: This is the most commonly used in architectural applications, except that after annealing and descaling, a final light cold rolling with a polishing roll is performed, the other process is the same as 2D, the surface is slightly shiny, and can be polished.

No.2B Bright Annealed: This is a reflective surface that is rolled with polished rolls and final annealed in a controlled
atmosphere. Bright annealing still retains its reflective surface and does not produce scale.

No. 3: represented by 3A and 3B. "
3A: The surface is uniformly ground, and the abrasive grain size is 80-100.
3B: The rough surface is polished, and the surface has uniform straight grains. Usually, it is polished on the 2A or 2B board with an abrasive belt with a particle size of 180-200.

No.4: One-way surface finish, not very reflective, this finish is probably the most versatile in architectural applications. The
process steps are firstly polishing with coarse abrasives, and finally grinding with abrasives with a particle size of 180.

No. 6: It is a further improvement of No. 4. It is polished with a Tampico polishing brush in abrasive and oil media. 4 surfaces.
This surface finish is not included in "British Standard 1449", but is available in American Standard.

No.7: Known as bright polishing, it is polishing the surface that has been ground very finely but still has scratches.
Usually a 2A or 2B plate is used, with a fiber or cloth polishing wheel and the corresponding polishing paste.

No.8: Mirror polished surface with high reflectivity, often called mirror finish because it reflects a clear image. Continuous polishing of stainless steel with a fine abrasive, followed by a very fine polishing paste.

Surface finish level 14 = Ra 0.012
Surface finish level 13 = Ra 0.025
Surface finish level 12=Ra 0.050
Surface finish level 11 = Ra 0.1
Surface finish grade 10 = Ra 0.2
Surface finish grade 9 = Ra 0.4
Surface finish grade 8 = Ra 0.8
Surface finish grade 7 = Ra 1.6
Surface finish grade 6 = Ra 3.2
Surface finish grade 5 = Ra 6.3
Surface finish grade 4 = Ra 12.5
Surface finish level 3 = Ra 25
Surface finish class 2 = Ra 50
Surface finish class 1 = Ra 100
The above surface roughness units are all μm, that is, microns.
Are there different size belt sanders?
What is a wide belt sander used for?
What is the top rated belt sander?
How wide are belt sanders?
