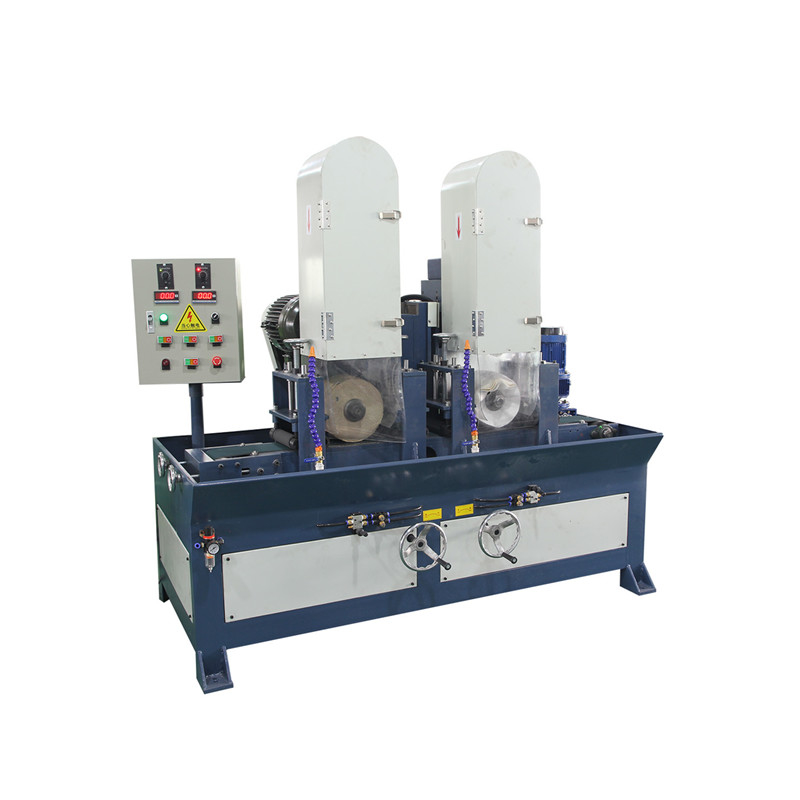

Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing

Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing
Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing

Large Image :  Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $50,000.00/sets
Packaging Details: Standard Export package
Detailed Product Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC, Motor
Power (kW): 25 Weight (KG): 900
Key Selling Points: Easy To Operate Warranty: 1 Year
Applicable Industries: Energy & Mining, Machinery Repair Shops, Manufacturing Plant Showroom Location: None
Application: Polishing Product Name: Disc Finishing Machine
Name: Steel Polishing Machine Usage: S Polishing
Function: Polishing Keyword: Metal Polishing Machine Used
Type: Stainless Steel Grinding Polishing Machine Machine Type: Automnatic
Advantage: High Working Efficiency Voltage: 380V 50Hz 3Phase/Customized

Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing

Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing 0

It is suitable for plane polishing and wire drawing of metal trim strip, lock panel, switch panel and other
hardware and plastic products. The machine has two grinding heads, three grinding heads, five grinding
heads, circulating conveying type and other models. Customers can order according to the processing
needs.



Specification

1. Power supply voltage 380V-50hz

2. Main power 4kw

3. Total power 9.3kw

4. Spindle speed 1800r/min

5. Water pump 0.15kw

6. Consumable specifications Abrasive belt 150X2100mm

7. Consumable specifications Polishing Φ 250*700mm

8. Air pressure 0.55mpa

9. Processing range Width 10-150mm Thickness 1-100mm

10. Conveying speed 0-8m adjustable

11. Machine dimensions 2x1.2x1.9m l * w * h



Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing 1Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing 2Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing 3Weld seam grinding machine for door hinges Aluminium and steel hinges weld polishing 4
