JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe

Certification
China Dongguan Jinzhu Machinery Equipment Co., Ltd. certification
China Dongguan Jinzhu Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

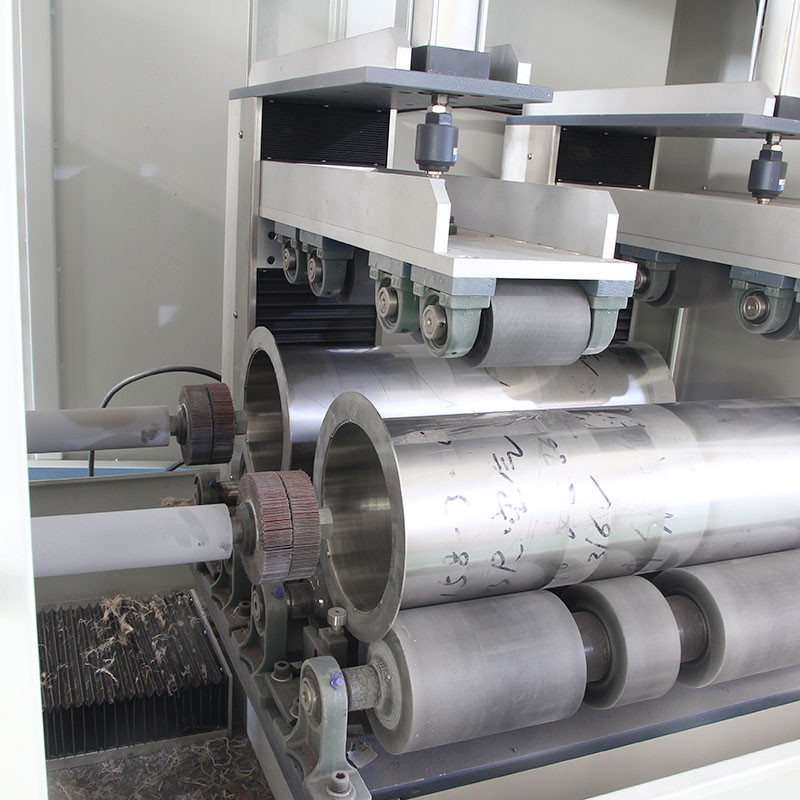

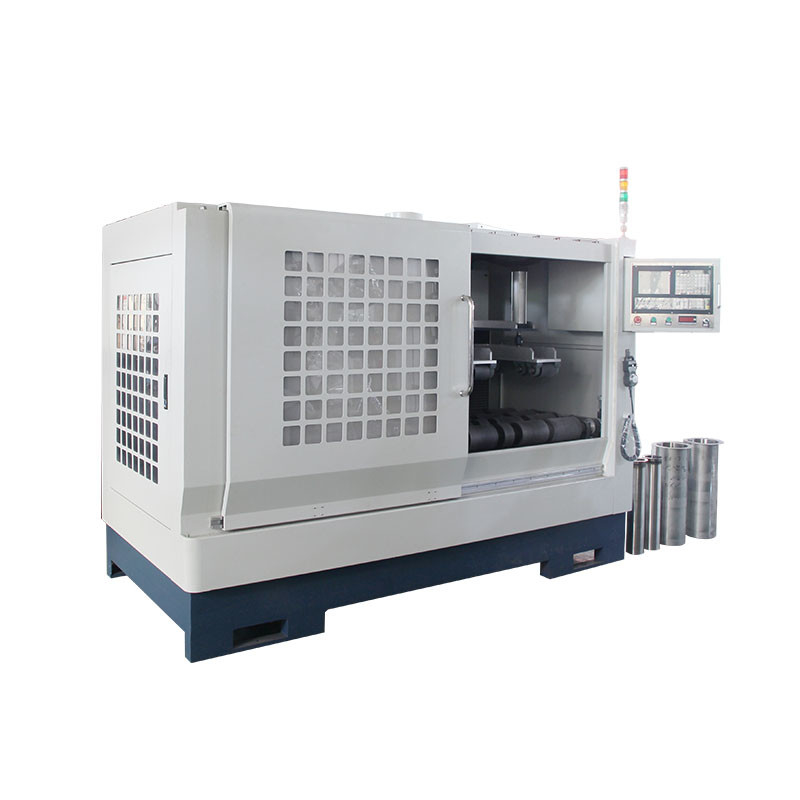

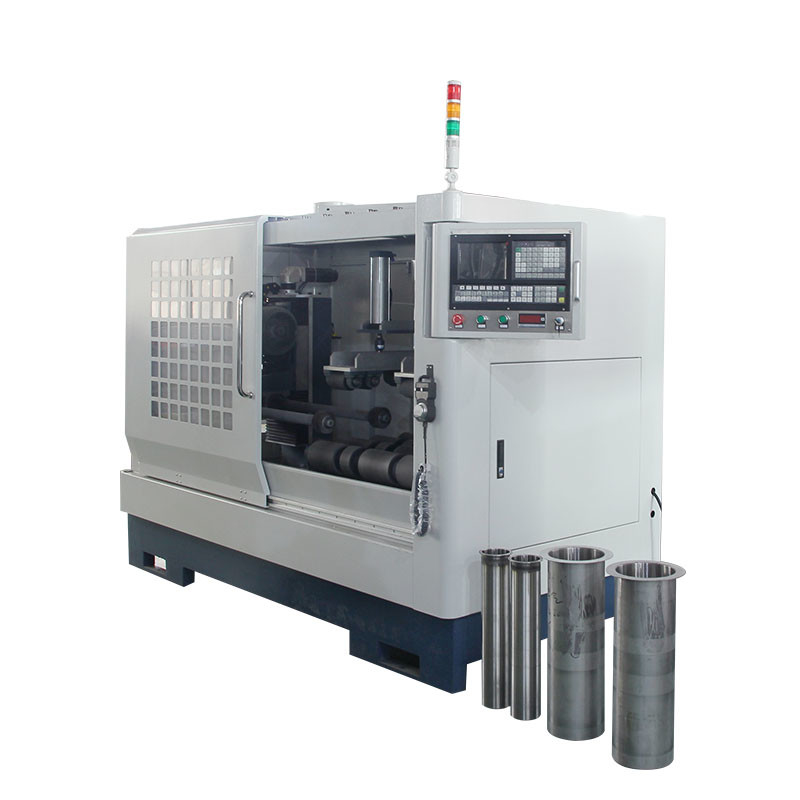

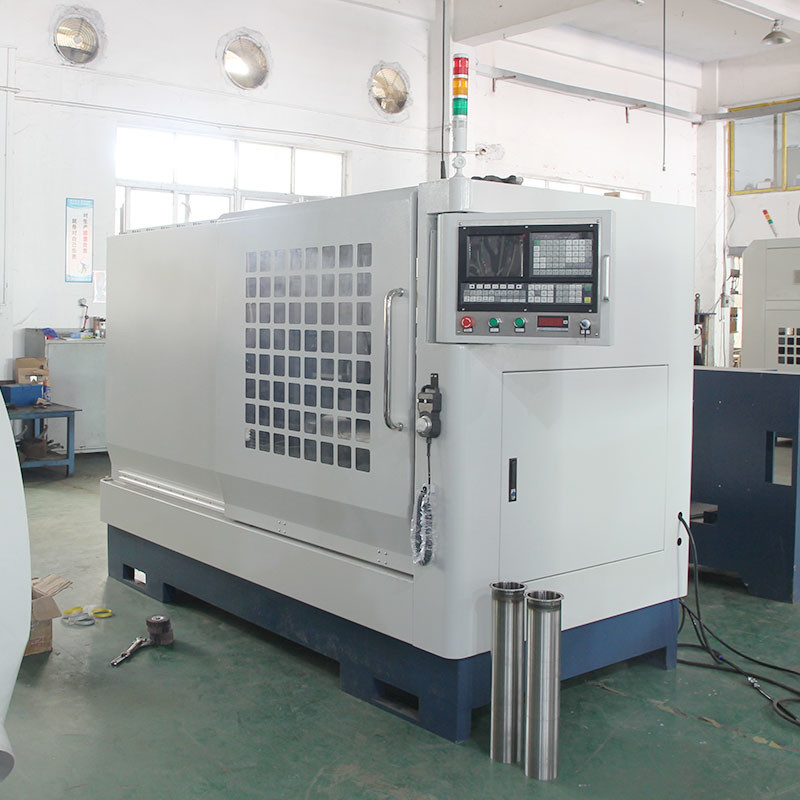

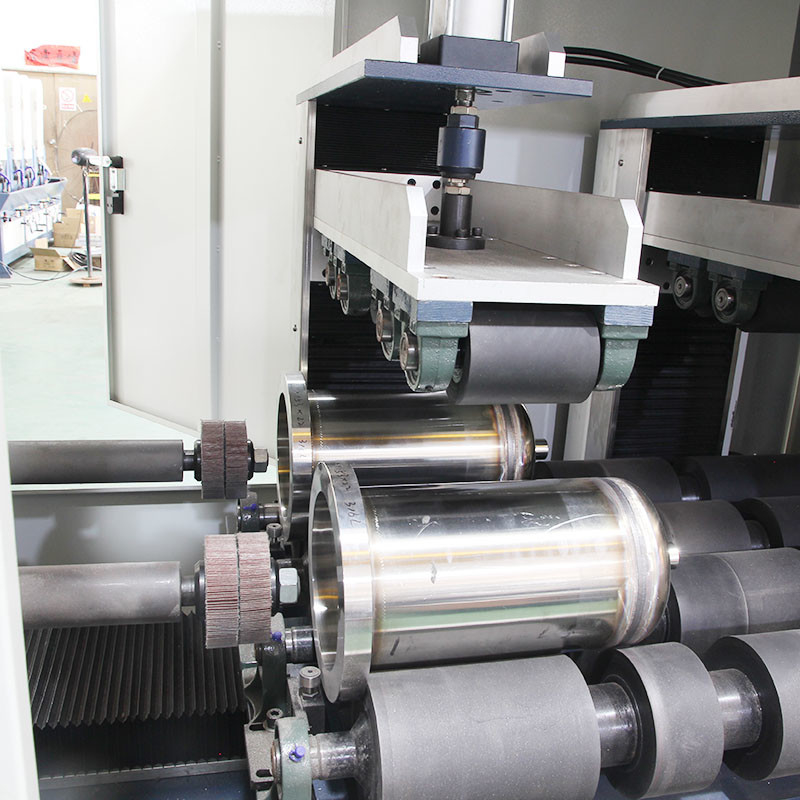

JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe

JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe

Large Image :  JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: $80,000.00 - $100,000.00/sets
Packaging Details: standard package: wooden case or container
Supply Ability: 299 Set/Sets per Month
Detailed Product Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Motor
Power (kW): 7.5 Weight (KG): 2000
Key Selling Points: Easy To Operate Warranty: 1 Year
Applicable Industries: Energy & Mining, Machinery Repair Shops Showroom Location: None
Power Supply Voltage: 380V-50H Total Power: 7.5kw
Main Motor: 5.5KW Spindle Speed: 2800r/min
Air Pressure: 0.5-0.8Mpa Servo Motor: 0.75kw*2
Consumables Specifications: 100*100mm The Largest Product Processed: 180*800mm
Number Of One-time Processing Products: 2 Port: Shenzhen,China

Product Description
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 0
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 1
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 2
Parameters
Power supply voltage: 380V-50H Total power: 7.5kw Main motor: 5.5KW Spindle speed: 2800r/min Air pressure: 0.5-0.8Mpa Servo motor: 0.75kw*2 Consumables Specifications: φ100*100mm The largest product processed: φ 180*800mm Number of one-time processing products: 2 Total weight: 1000kg Equipment installation size: 2600*1350*1900mm
Specification
item
value
Place of Origin
China

Guangdong
Brand Name
JINZHU
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Engine, Motor
Power (kW)
7.5
Weight (KG)
2000
Key Selling Points
Easy to Operate
Warranty
1 Year
Applicable Industries
Energy & Mining, Machinery Repair Shops
Showroom Location
None
Power supply voltage
380V-50H
Total power
7.5kw
Main motor
5.5KW
Spindle speed
2800r/min
Air pressure
0.5-0.8Mpa
Servo motor
0.75kw*2
Consumables Specifications
100*100mm
The largest product processed
180*800mm
Number of one-time processing products
2
Packing & Delivery
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 3
standard package: wooden case or container
Company Profile
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 4
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 5
JINZHU Stainless steel pipe filter housing inner surface inwall dry polishing machine Sanding inside the pipe 6
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(24.00%),Mid East(23.00%),Domestic Market(20.00%),South Asia(15.00%),South America(7.00%),North America(5.00%),Eastern Europe(2.00%),Eastern Asia(1.40%),Central America(0.80%),Oceania(0.50%),Western Europe(0.50%),Africa(0.30%),Northern Europe(0.30%),Southern Europe(0.20%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
OEM & ODM,Finishing Machinessing,Polishing Machine,Deburring Machine,Buffing Machine

4. why should you buy from us not from other suppliers?
A top brand in China, since 2006. A wide range production line, with Specialized to be engaged in various types metal surface treatment machinery. A strong capacity & capability on delivery.Custiomization & Personalization are acceptable as per request.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
