Home ProductsIndustrial Grinding Machine

Bending tube grinding machine

Bending tube grinding machine

Bending tube grinding machine
Bending tube grinding machine Bending tube grinding machine Bending tube grinding machine Bending tube grinding machine

Large Image :  Bending tube grinding machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-L6011-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export pacakge
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Name: Bending Tube Grinding Machine Use For: Bending Round Tube
Finishing: Satin Or Brushed Finishing
High Light:

industrial surface grinder


automatic surface grinding machine

Product Description

Bending tube grinding machine is suitable for round oval straight and bent tube grinding, and the pipe diameter can be 0-60 mm, 60-90 mm,90-150 mm. The girt of abrasive belt is from small to large to get satin grinding effect and get good ready for next polishing processing. And the features of the bending pipe belt grinding machine are below:

  • manual operation and safety
  • less Maintenance rate than common machine
  • because special design, So less deformation rate after polishing (almost less than 2%)
  • continuously working time more than 10 years

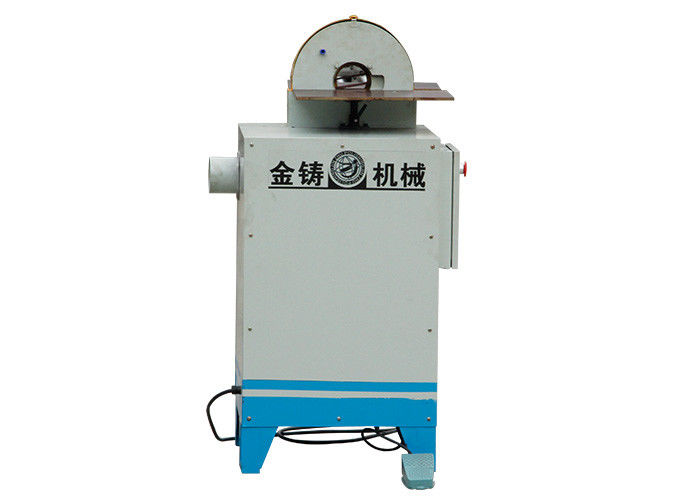

Bending tube grinding machine
Model JZ-L6011-B
Main motor 2.2kw
Pipe diameter 0-60mm can be customized
The size of abrasive belt 2100mm*50mm
Spindle speed 1440 r/min
Voltage 380V, 50HZ
Mechanical operation manual
belt size 650mm*25mm
Usage for bending pipe sanding/polishing

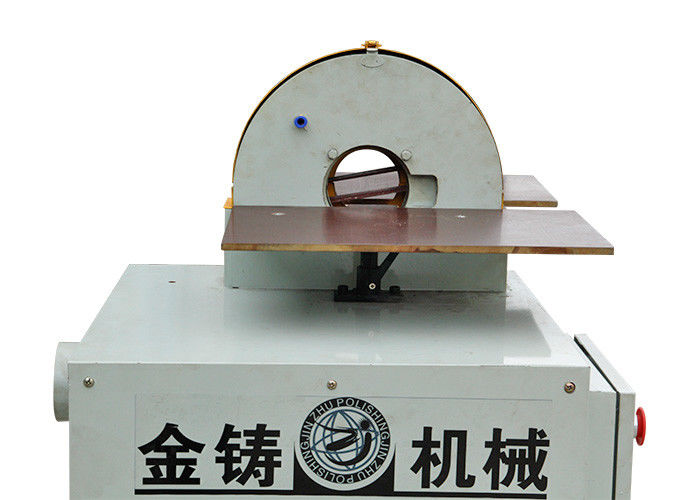

Detail image of Bending tube grinding machine


Bending pipe belt sanding machine

bending pipe belt sanding machine

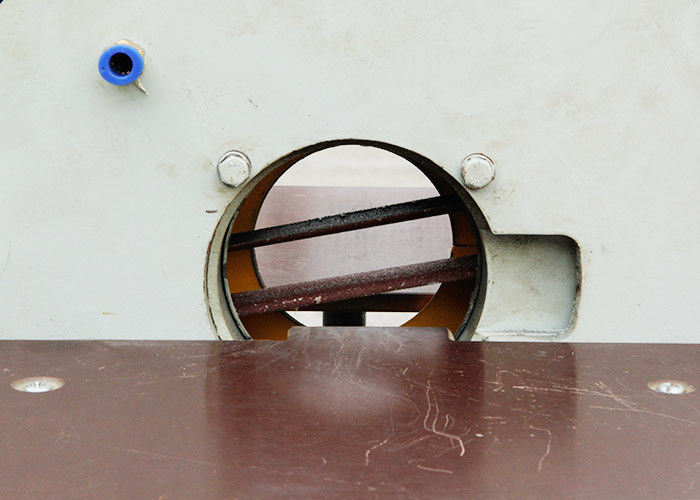

① Adjusting grinding diameter round: adjusting the interval of the belt according to the size of sanded pipe diameter.

② Transmission wheel: the power of belt needed to be operated. Press to change the wheel when replacing the belt, and to achieve purpose of rapid changing belt.

③ Tire fixed: eccentric prevent belt slippage and ensure uniform belt running smoothly.


The application of Bending tube grinding machine


The application of bending pipe belt sanding machine

The application of bending pipe belt sanding machine

For more information, please contact us by below:

Contact person: Laura xu
Mobile/wechat/whatapp: +86 13929272332
