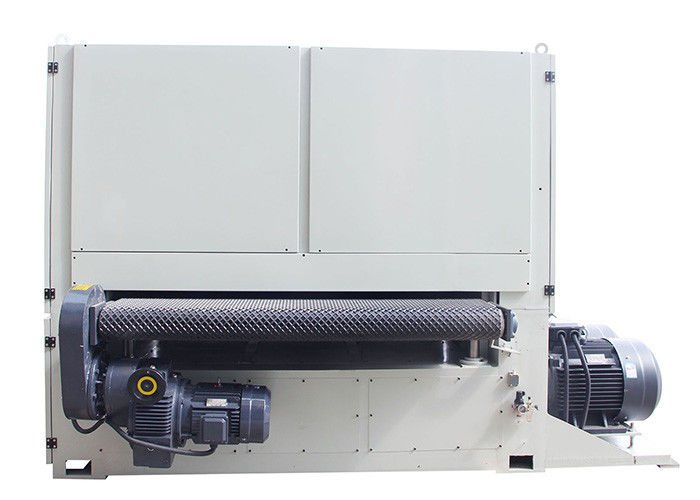

37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate

37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate
37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate 37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate 37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate 37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate

Large Image :  37kw*2 No.4 Hairline Finishing Machine For Stainless Steel Aluminum Plate

Product Details:
Place of Origin: China
Brand Name: JINZHU
Certification: CE
Model Number: JZ-L1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export package
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6 sets per month
Detailed Product Description
Name: Stainless Steel Aluminum Plate No.4 Hairline Finishing Machine Finishing: No.4 Hairline Finishing
Max. Width Of Sheet: 1500mm
Highlight:

flat grinding machine

,

wire buffing machine

Product Description

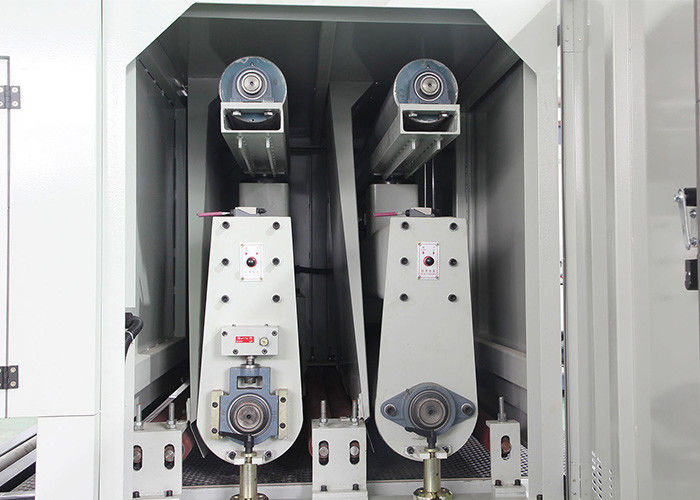

Stainless steel aluminum plate No.4 hairline finishing machine is designed in order to achieve the satin finishing, NO.4, hairline finishing with abrasive belts for metal sheet surfaces sanding or finishing (as stainless steel sheet, aluminum sheet). Single or multiple abrasive belts of variable grain patterns adaptable.

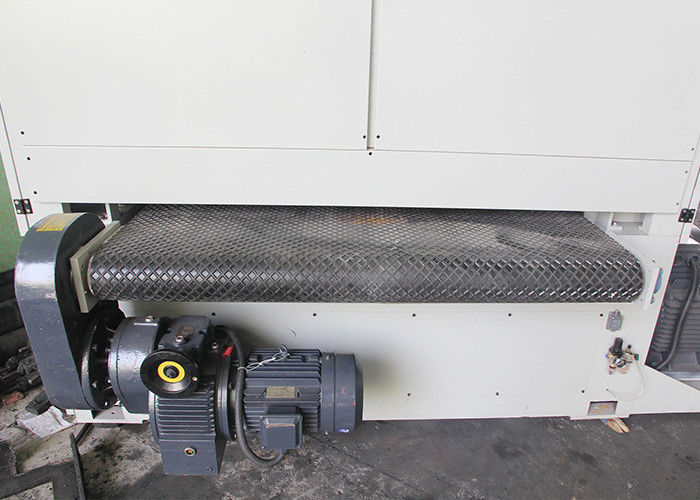

This kind of machine always work with conveyor bed, precisely up or down on 4 pneumatic spindles, dust extraction funnels.

Max working width include: 400 mm, 600 mm, 1000 mm, 1300 mm ,1500mm.

Working length: more than 400 mm; working thickness: 0.5-80 mm; feed speed: 5-25 m/min.

The features of Stainless steel aluminum plate No.4 hairline finishing machine are below:

  • wet type or dry type working condition
  • can be installed abrasive to get satin grinding or hairline finishing
  • continuously working time more than 10 years and safety operation
  • less Maintenance rate than common machine
  • because special design, So less deformation rate after polishing (almost less than 2%)

Specification

Stainless steel aluminum plate No.4 hairline finishing machine
Model JZ-L1500
Main motor 37kw*2
Application sheet sanding, polishing or brush finish
Worktable size 40-1500 mm (we can make according to your sheet width)
Working thickness 0.5-80 mm
Consumable size 1530*1900 mm
Voltage 380 V,50/60 HZ,3 Phase
Mechanical operation PLC control
Working condition wet type or dry type
ROHS environment protection completely with dust cove





1000mm stainless steel aluminum sheet surface sanding machine

Application

1000mm stainless steel aluminum sheet surface sanding machine

For more information about this machine, please contact us, we have to give you right and suitable solution after discuss.

Contact person: Laura xu

whatapp/wechat/mobile:0086 13929272332

Mail ID: sales@dgjinzhu.com
