Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction

Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction

Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction
Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction

Large Image :  Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction Get Best Price

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: JINZHU
Model Number: JZ-PH6001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Detailed Product Description
Usage: Polishing,Metal Surface Polishing Type: Fully Automatic,Semi Automatic
Frequency: 50HZ Installation Size: 2300*1500*1700mm L*W*H
Table Swing Range: 0~40mm Processing Range: Φ12~35mm
High Light:

Dust Extraction Stainless Steel Polishing Equipment

,

Hood Stainless Steel Polishing Equipment

,

2300r/min Metal Polishing Machine

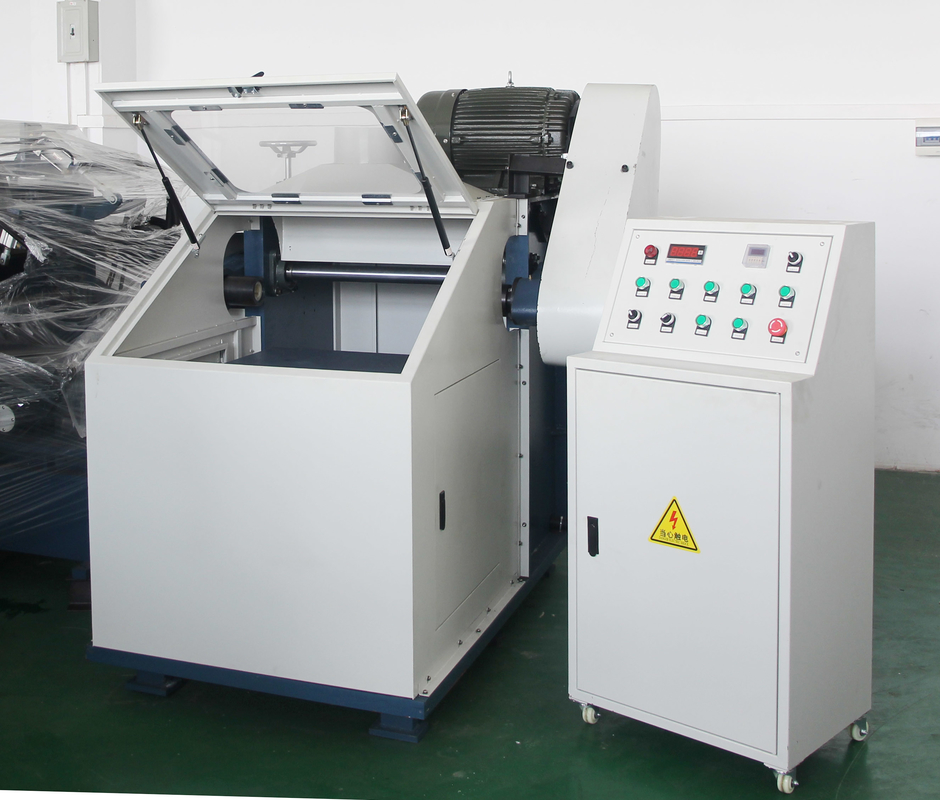

Polishing Machine With Environmental Protection Hood And Dust Extraction Equipment Stainless Steel Polishing Equipment



1. Specification

1. Voltage 380V-50hz
2.  Main Power 11hz
3. Total power 11.87kw
4. Workbench stroke 1000mm
5. Spindle speed 2300r/min
6. Waxing device
7.  Consumable specifications 600*Φ250mm
8. Consumables itinerary 80mm
9. air press 0.55MPa
10. Processing range Φ12~35mm
11. Table swing range 0~40mm
12. Installation size 2300*1500*1700mm L*W*H





2. Consumables

The main material is cloth, the mechanical wheel used for polishing. Polishing cloth wheels are made of linen, cotton, non-woven fabrics, flannel, denim, miscellaneous cloths, hemp wheels, nylon wheels, abrasive cloth wheels, etc., all of which are used for various polishing tools.

car line wheel
Performance: This kind of product is generally cut with twill cotton and plain cotton, sewn with strong sewing, and has relatively strong grinding force. Specifications: can be produced in the size provided by the customer. Uses: This type of product is usually used for medium grinding and even polishing, but it also depends on the material of the workpiece and the quality requirements of the product, and cannot be generalized. For example, if the hardness of the workpiece is low, it can also be used for rough grinding, and the quality of the grinding is not very high, and it can also be used for polishing.
wind mill
Performance: This kind of product is generally cut with finer yarn cotton cloth at an angle of 45 degrees, and then processed, with good softness and slight grinding force.
Uses: This type of product is usually used for polishing in the final process of grinding, also known as mirror finishing. The wind wheel is usually divided into two types: poplin and rain cloth, the difference is the rain cloth
The hardness and density are higher than that of poplin, the grinding force is large, and it is wear-resistant.
Features: The gap between each page is large and wavy, and the air in these wind pits has a cooling effect during polishing and will not burn the workpiece.
Buckle wheel
Performance: This kind of product is generally cut with finer yarn cotton cloth at an angle of 45 degrees, and then processed, with good softness and slight grinding force.
Uses: This type of product is usually used for polishing in the final process of grinding, also known as mirror finishing. Buckle wheel is usually divided into poplin and rain cloth, the difference is rainproof
The cloth hardness and density are higher than that of poplin, the grinding force is large, and it is wear-resistant.

In order to improve the use effect, the material and size of the polishing cloth wheel required by the polishing machine should be better prepared with the requirements. The motor power of the polishing machine determines the size of the polishing wheel, and the shaft of the motor must match the aperture of the polishing wheel. Place the buffing wheel in the center of the shaft and tighten it with a wrench. The uniform linear speed on the surface of the polishing wheel can improve the polishing effect, so if a large polishing wheel is used with a smaller motor, the linear speed will drop a lot during polishing, and the polishing effect will be affected.



Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction 0Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction 1

Company image

Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction 2Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction 3Environmental Protection Stainless Steel Polishing Equipment Hood And Dust Extraction 4
