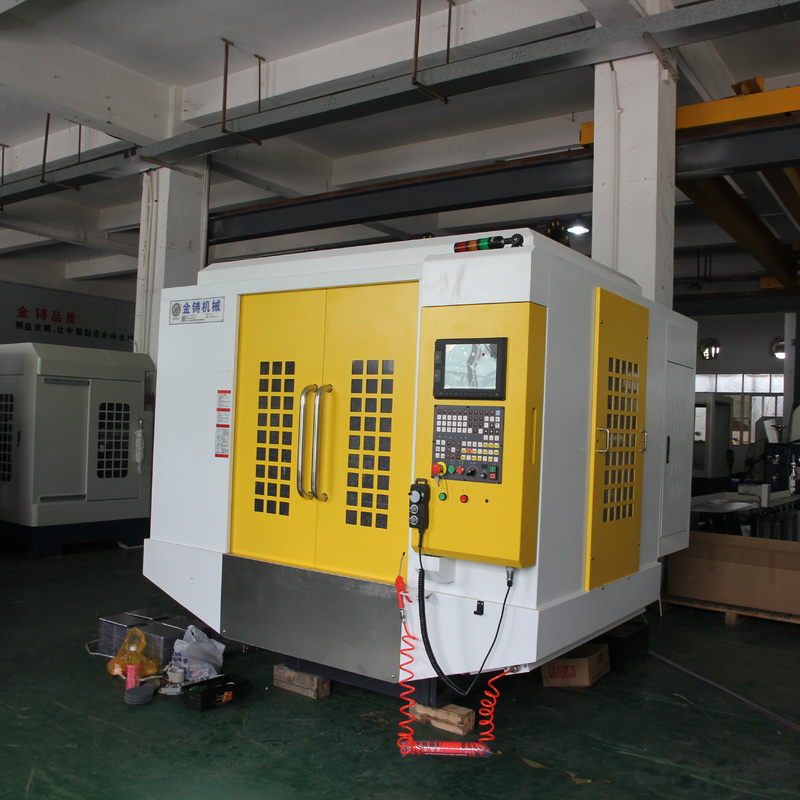

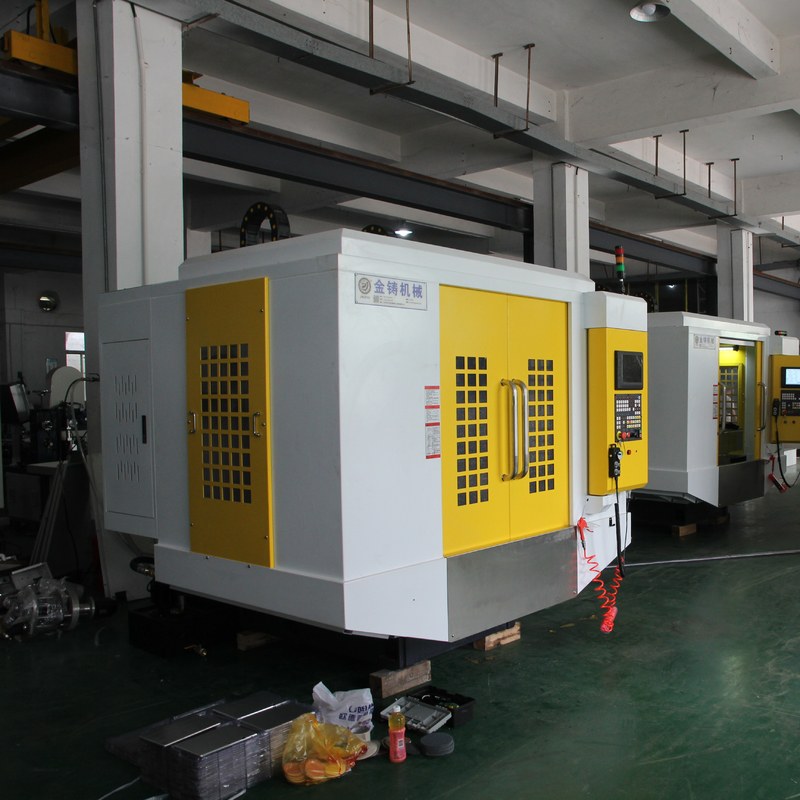

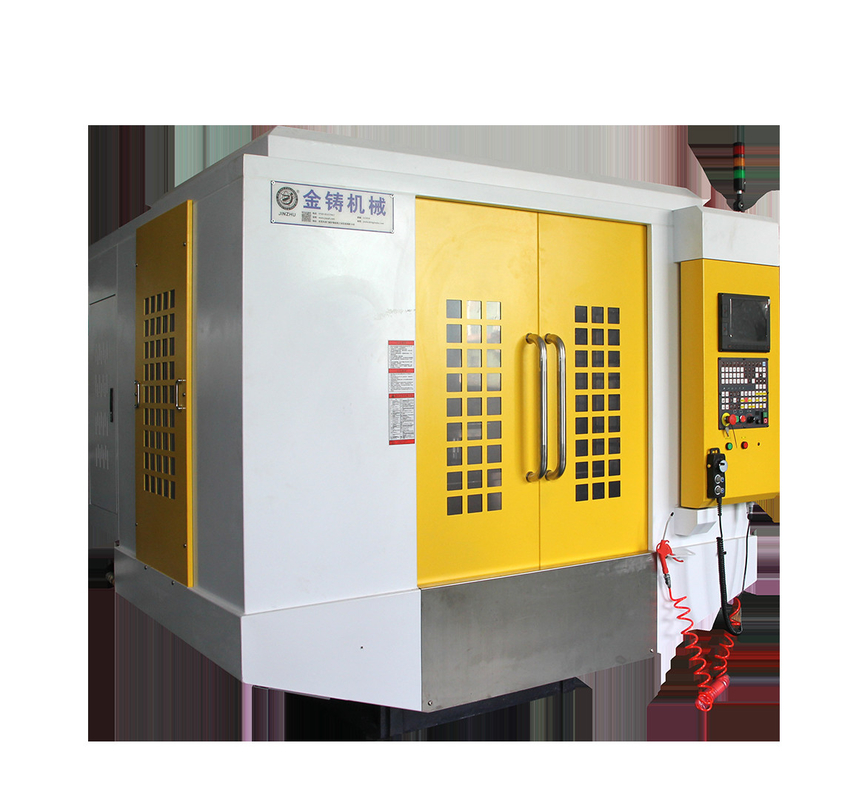

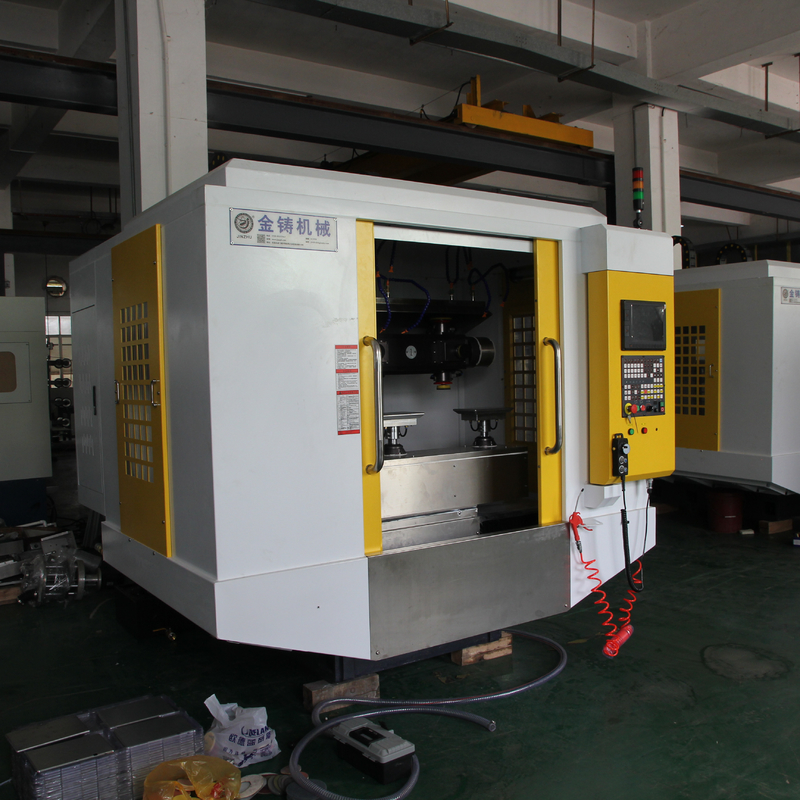

Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine

Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine

Large Image :  Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $48,000.00/sets
Packaging Details: Standard Export package
Detailed Product Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Motor
Power (kW): 10 Weight (KG): 2000
Key Selling Points: Automatic Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant Showroom Location: None
X-axis Route: 250mm Y-axis Route: 450mm
Z-axis Route: 350mm A-axis Route: -1°~365°
C-axis Route: -30°~390° Rotary Table: 192mm
Rotating Speed: 0~10000 X Y Z Fast-forward Speed: 25X25X20
Positioning: ±0.025 Power Supply: 380V-10KVA

Product Description
Resume: This equipment is a kind of five-axis linkage CNC polishing equipment. CNC control system, programm according to the outline of the product; The product is fixed manually on the fixture (vacuum suction); The precision motor is driven by G code to move according to product profile; The grinding head drives the sandpaper(or other consumables) to pressurize the surface of the product for polishing; After the product is recycled, the polishing effect meets the standard requirements. Functional characteristics: Five work turntables move synchronously, processing five identical workpieces at the same time Adapted to grinding the cell phone shell arc surface and side arc surface High productivity and stable quality No dust, no risk of dust explosion, clean environmental protection (spray) Overview of automated procedure: The whole machine adopts CNC control system, five-axis linkage motion profile, high-precision interpolation, high-speed response; High-precision high- power servo motor drive; The driving product is modeled according to its own profile; At the same time (rotating vibration polishing wheel sticky sandpaper) sandpaper to polish the product; After the recycling process, the polishing effect of the product meets the requirements of the standard, and 5 products can be processed at the same time. Add water to dedust, cool, and decontaminate. Electrical control overview: The system controls the entire machine to perform automatic grinding Automatic control, monitoring, counting, alarm Single-action operation is available (for machine adjustment or special circumstances) Different graphic G code can be imported according to different products Applicable product size: Minimum size: 45 X 60mm Maximum size: diagonal size not exceeding 190mm Lower tilt Radian angle: ﹤18 ° It can be adjusted according to the workpiece size to adapt to the production of similar products. Suitable Height Size: Max ~ 20x80mm (available upon customer’s requests) Applicable product coverage: This product is suitable for surface polishing, other processes are not included in the equipment specifications. Power supply: The user's primary power supply is three-phase 380V 50/60Hz 8.5 KVA Require the preparation of non-instantaneous power outages, non-noise high-quality power supplies(usually power outages do not affect equipment components and software changes, but it is recommended that users must remove the product in production and return the equipment to the origin during power outages) Air pressure: Use factory air pressure 0.4 Mpa above(dry air required) Customer(primary side) airframe supply port: air filter + aerosol separator Gas consumption: ≥40L/min, it is recommended that the customer should provide sufficient volume and a certain supercharged gas capacity Tank at a time. The recommended specification is: the pressure is not less than 0.75 kgf/cm, and the volume is not less than 50L(or dedicated pressure tank). Otherwise, in individual cases, it may cause problems such as the equipment's abnormal operation and the reduction of the mount rate. DC power supply:24V-200W Leakage switch:64A Button switch:/ Electric relay:24V
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine 0
Specification
Multi-axis CNC polishing machine is the standard machine of our company, which can polish the surface of various hardware products. This multi-axis CNC polishing machine is mainly used to remove scratches, remove knife lines and polish the shell of tablet computers and mobile phones. Five-axis linkage CNC polishing machine is mainly used in mobile phone middle frame back cover, battery cover, tablet computer and various 3C electronic products and related accessories products. Five-axis CNC polishing machine is suitable for surface treatment of plastic, aluminum alloy, stainless steel, ceramic, glass, titanium alloy and other hard/brittle materials. After the plastic injection is completed, the molded product must be taken out from the mold. If the mold cannot be opened, it cannot be taken out. Therefore, a set of plastic molds must be divided into upper and lower or left and right molds, and the mold and the mold are separated or combined. There will be a gap there. Because the plastic must be pressurized to fill the mold, no matter how close the mold is, the plastic will be squeezed into this gap more or less. When the molded product is taken out from the mold, it will be on the gap. Leaving a trace, and this trace is called [Parting line or PL] in the plastics industry. Because it is usually a whole surface on the mold, it is often called the "parting surface" or "split surface" when the mold or drawing 3D drawings. If you look closely at this trace, you will find that there is more flesh growing out of the plastic. Sometimes the plastic grows too much flesh, which is called "flash or burr (in mainland terms)". Sometimes the mold design is poor, or the mold is repaired due to wear, so that the two molds cannot be completely closed, resulting in dislocation, which will form an obvious step. Because the PL is formed by the joined molds, the location of the PL must be determined at the beginning of the mold design, and because the position of the PL will affect the position of the subsequent mold opening, it is necessary to avoid the undercut of the mold. For mold problems, for example, for a plastic cup with a handle, the parting surface should preferably be parallel to the handle, so as to avoid the handle being buried in the mold and unable to be taken out after parting. Assembly line, parting line, art slot The assembly line is a line formed when the objects are divided into parts and then merged. Reasonable arrangement of the position and proportion of the parts can decorate and beautify the details of the product. The most common position arrangement ratio is the golden ratio position, and there is also a common middle division (most of this division method is caused by the limitation of the object ejection) The parting line is that the workpiece formed by the mold will have a parting line. The reason why the metal workpiece is superior in post-processing is generally polished in the later stage or the quality of the mold can be controlled in the early stage in the later stage. The lacquer treatment weakens the parting line, and the surface of the workpiece is basically invisible. The post-processing of plastic workpieces is relatively poor, and the pre-appearance design should avoid the parting line.
item
value
Place of Origin
China
Guangdong
Brand Name
JINZHU
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2022
Warranty of core components
1 Year
Core Components
PLC, Engine, Motor
Power (kW)
10
Weight (KG)
2000
Key Selling Points
Automatic
Warranty
1 Year
Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Showroom Location
None
x-axis route
250mm
y-axis route
450mm
z-axis route
350mm
A-axis route
-1°~365°
c-axis route
-30°~390°
rotary table
192mm
Rotating Speed
0~10000
X Y Z Fast-forward speed
25X25X20
positioning
±0.025
Power supply
380V-10KVA
Packing & Delivery
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine 1
Company Profile
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine 2
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine 3
Laptop mobile phone shell five-axis linkage 3D copy CNC grinding and polishing machine 4
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.
