|Grade:||Industrial||Customized Support:||OEM, ODM|
|Variable Speed:||NO||Rated Voltage:||380V|
|Rated Input Power:||14||Frequency:||50HZ|
|No-Load Speed:||2000||Sand Pad Size:||1700*420|
|Power Source:||Electric||Product Name:||Belt Sander Machine|
|Standard Accessories:||Sander Paper*1||Voltage:||380V-480V|

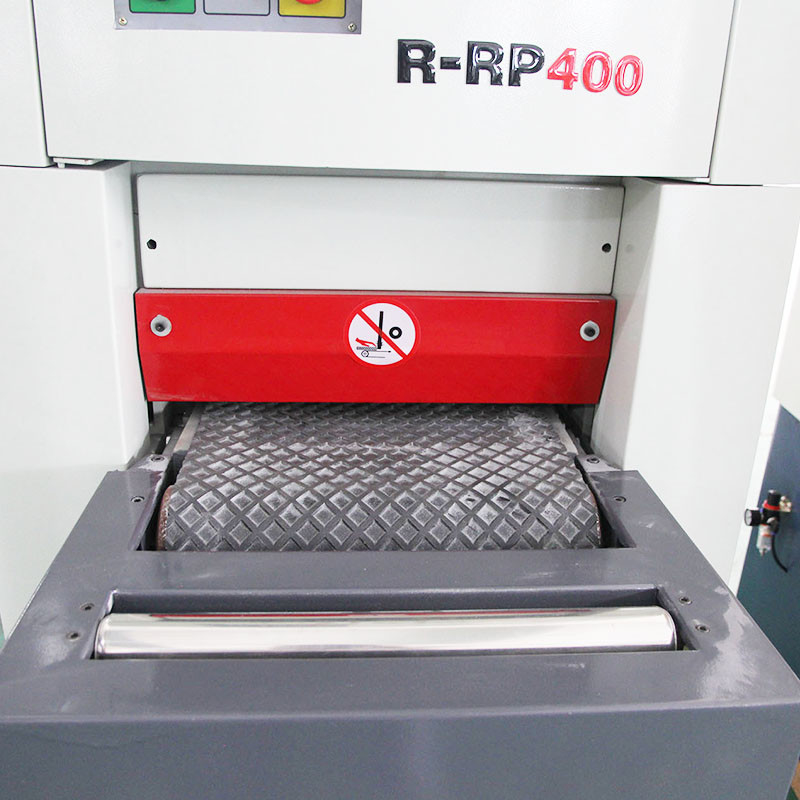

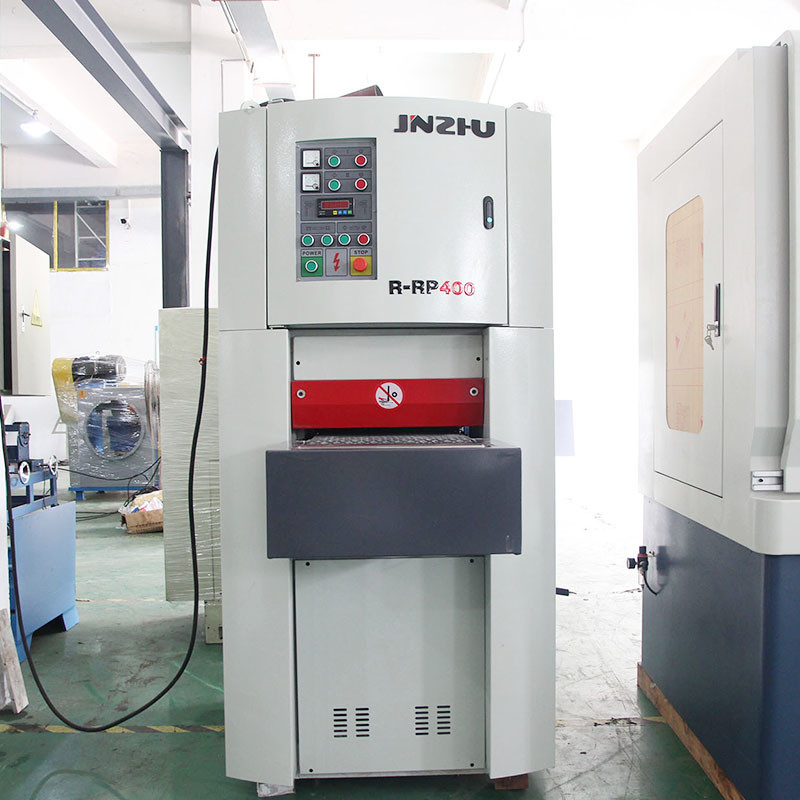

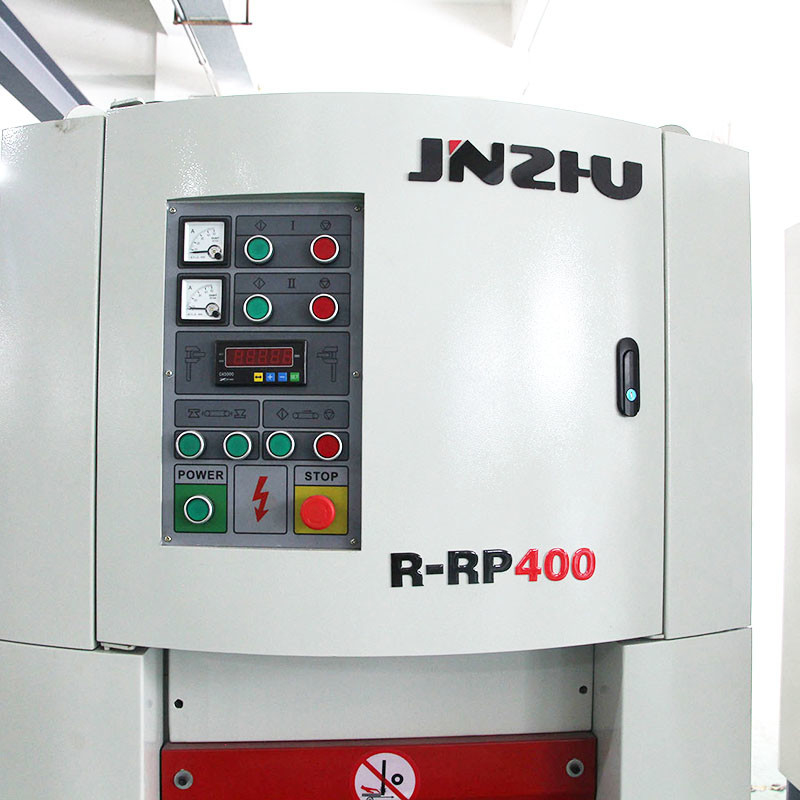

Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
It is widely used in flat panels and various hardware panels for surface sand-drawing treatment. The
machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm,
1000mm, 1500mm and other specifications. The working grinding heads are also divided into single
group, double group and multiple groups. Customers can choose according to process and needs.
1. Voltage 380V-50hz
2. Main Power 5.5kw
3. Total power 14.12kw
4. Abrasive belt line speed 20m/s
5. Lifting motor 0.37kw
6. Conveying motor 0.75kw
7. Consumable specifications 1700*420mm
8. Lifting stroke of worktable 120mm
9. air press 0.55MPa
10. Processing range W:10~400mm H:0.5~110mm
11. Conveyor belt size 2600*400mm
12. Installation size 1600*800*1800mm L*W*H
All of our machine is equipped with 1 year warranty period, if there are any problem in operating it, please kindly feel free to contact us, our after-sale servicer will do their best to solve your problem.
Since 2006, we produce automatic machines for polishing, buffing, grinding, wire drawing metal surfaces(rotary table, sheet, pipe,tube,oddly-shaped material and so on), processing metal such as SS, iron, brass, zinc,and aluminum. The final effect can be straight grain, round & circle grain, No.4, hairline effect and so on for grinding machine, ans smooth, satin finishing, mirror finishing, 8K mirror finshing effect for polishing machine.
· For extreme flexibility
· For the very affordable price
Your satisfaction can be our great progress!
Choose us you won't regret!
Please contact with us for more information discussion
