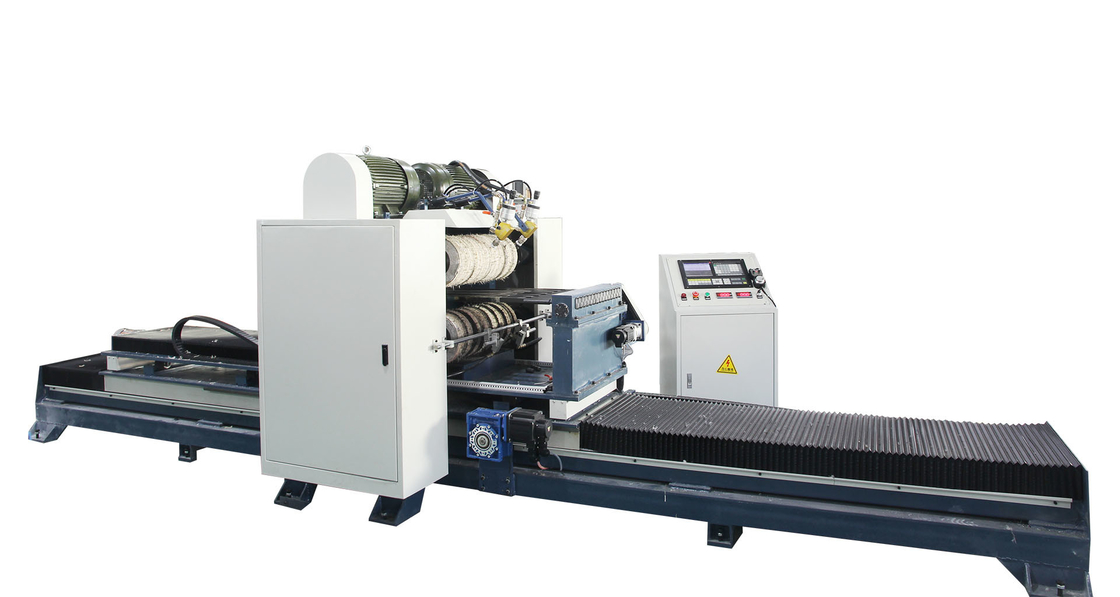

1200mm Square Tube Polishing Machine / Both Side Round Tube

1200mm Square Tube Polishing Machine / Both Side Round Tube
1200mm Square Tube Polishing Machine / Both Side Round Tube 1200mm Square Tube Polishing Machine / Both Side Round Tube 1200mm Square Tube Polishing Machine / Both Side Round Tube 1200mm Square Tube Polishing Machine / Both Side Round Tube

Large Image :  1200mm Square Tube Polishing Machine / Both Side Round Tube

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $23,700.00/sets 1-4 sets
Packaging Details: carton or wooden case
Contact Now
Detailed Product Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC
Power (kW): 11 Weight (KG): 1000
Key Selling Points: Easy To Operate Warranty: 1 Year
Applicable Industries: Machinery Repair Shops Showroom Location: None
Application: Polishing After-sales Service Provided: Online Support
Product Name: Metal Polishing Machine Name: Surface Polishing Machine
Usage: Automatic Control Operation Function: Metal Surface Grinding Polishing
Power Supply: 1 Phases AC 220V 50-60HZ Voltage: 220V/380V/415V/440V
Processing Range: 10-35mm L<1000mm
High Light:

1200mm Tube Polishing Machine

,

Square Tube Polishing Machine

,

Metal Surface Grinding Polishing Machine

Product Overview

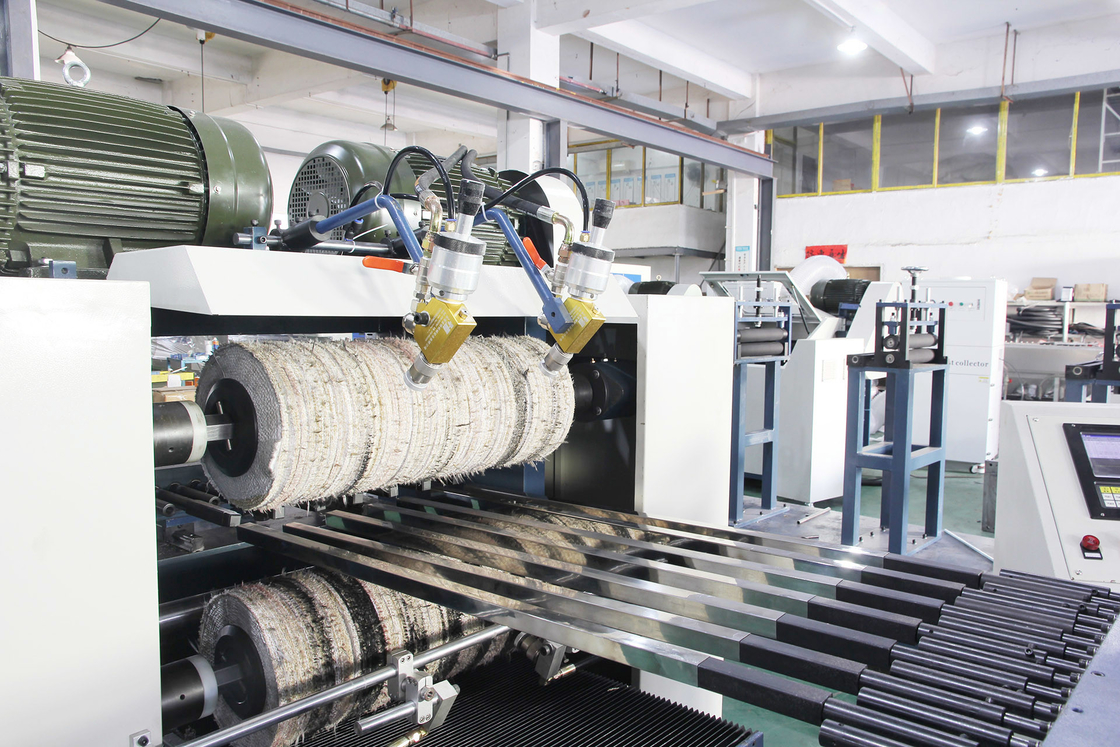

1200mm Both side round tube polishing machine
Square tube:
(dia 10-35 mm length less than 1000mm)
1,Polishing upper and lower surface.
2,90 degree rotation in the fixture of the
left and right surface polishing.
Usage
圆管:(直径 10-35mm 长度小于 1000mm) 产品360度旋转进行抛光处理.
Tube dia 10-35mm length less than 1000mm. Can be polished 360 degree rotate with the jigs.
设备技术参数 Specification
1. 电源电压 Voltage 380V-50hz
2. 主电机 Main Power 11kw
3. 总功率 Total power 23kw
4. 主轴转数 Spindle speed 2300r/min
5. 工作台行程 Workbench stroke 1000mm(可订做)
6. 机头升降 polishing head up / down 120mm
7. 打蜡装置 Waxing device 可固体/液体打蜡
8. 气源气压 air press 0.55Mpa
9. 耗材规格 Consumable specifications 600*Φ 250mm
10. 加工范围 Processing range Φ 10-35mm 长度<1000mm
diameter 10-35mm length<1000mm
FEATURES AT A GLANCE
pipe sanding machine ss polishing machine buffing machine automatic pipe polishing machine automatic tube polishing machine tube sanding machine tube polishing machine for sale pipe polishing machine price ss buffing machine price
1200mm Square Tube Polishing Machine / Both Side Round Tube 0
1200mm Square Tube Polishing Machine / Both Side Round Tube 1
ss polishing machine
1200mm Square Tube Polishing Machine / Both Side Round Tube 2
ss polishing machine
1200mm Square Tube Polishing Machine / Both Side Round Tube 3
ss polishing machine

PRODUCT SPECIFICATIONS
No
Item
Data


1
Power
11KW


2
Voltage
380V-50hz


3
Operating weight
2Ton


4
Main Powe
11kw


5
Total power
23kw


6
Spindle speed
2300r/min
2300r/min

7
air press
0.55Mpa


8
Processing range
diameter 10-35mm length<10


SALES AND SERVICE NETWORK
1200mm Square Tube Polishing Machine / Both Side Round Tube 4
FAQ
Pre-sale service:

1. Free sample making:

For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back
cost should be paid by purchaser.
2. Progressing Solution Design:

According to customer's product processing requirement, we can design the unique solution that supports higher

manufacturing efficiency and better processing quality for customer.

After-sale service:

1.One years warranty for machine, One years for domestic source (One year for IPG source)

2. Technical support

Lifelong technical support online or by email and 18 hours online service to help you use our machine well.

3. Oversea service

Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation,

round tickets and engineer charges USD200/day

4. Training service

Offer training at our factory for free (you could visit us and learn)

Note:

We will supply the machine with training video and user's manual in English for installing, operation,

maintenance to ensure customer could use our machine well. It will be our pleasure if you reply back to us,

We will be out your service to give all details about our company and product.

Any further request or plans kindly get back to us with your requirments.
