150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine

Belt Grinder Sanding Machine

Conveyor Type Sanding Machine

Place of Origin:

guangdong

Brand Name:

JINZHU

Certification:

CE/ISO

Model Number:

JZ250709-01

Contact Us
Request A Quote
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine
Product Details
Power Supply Voltage:
380v-50hz
Size:
2500*1000*1500mm
Total Power:
8.99kw
Conveyor Motor:
0.75kw
Main Motor:
4kw * 2 Units
Swing Frequency Of Wire Drawing Wheel:
70 Times/minute
Grinding Head Swing Motor:
0.12kw*2
Sand Belt Specifications:
2100*150mm
Polishing Wheel Lifting Height:
0~120mm
Highlight:

Belt Grinder Sanding Machine

,

Conveyor Type Sanding Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 9820~7900usd
Packaging Details
Wooden crate packaging
Delivery Time
15-30working day
Payment Terms
L/C, T/T
Supply Ability
1 pcs /15working day
RELATED PRODUCTS
Good price Stainless Steel Precision Plane Polishing Machine For Mobile Phone Panel Mirror Finish Max Workpiece 600*600*100mm online

Stainless Steel Precision Plane Polishing Machine For Mobile Phone Panel Mirror Finish Max Workpiece 600*600*100mm

Get Best Price
Good price 11.8KW Vacuum Adsorption Stainless Steel Sheet Grinding Flat Edge Metal Plate Polishing Machine With Environmentally Friendly Cover online

11.8KW Vacuum Adsorption Stainless Steel Sheet Grinding Flat Edge Metal Plate Polishing Machine With Environmentally Friendly Cover

Get Best Price
Good price Advanced Metallographic Grinding Machine For Surface Polishing 1043kg Capacity 600*600*100mm Max Workpiece online

Advanced Metallographic Grinding Machine For Surface Polishing 1043kg Capacity 600*600*100mm Max Workpiece

Get Best Price
Good price Swing Motor 0.37kw Stainless Steel Plate Surface 8k Mirror Polishing Machine For Hardware Panels And Floor Drains Made online

Swing Motor 0.37kw Stainless Steel Plate Surface 8k Mirror Polishing Machine For Hardware Panels And Floor Drains Made

Get Best Price
Contact Us
Contact Now
Product Description

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 0

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 1
Product name
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine
Sample
can send us sample ,we will free polishing to try out the effect
Power supply voltage
380v-50hz
Size
2500*1000*1500mm
Total power
8.99kw
Conveyor motor
0.75kw
Main motor
4kw * 2 units
Swing frequency of wire drawing wheel
70 times/minute
Conveyor speed
10m/min (adjustable speed)
Grinding head swing motor
0.12kw*2
Sand belt specifications
2100*150mm
Polishing wheel lifting height
0~120mm
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 2150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 3

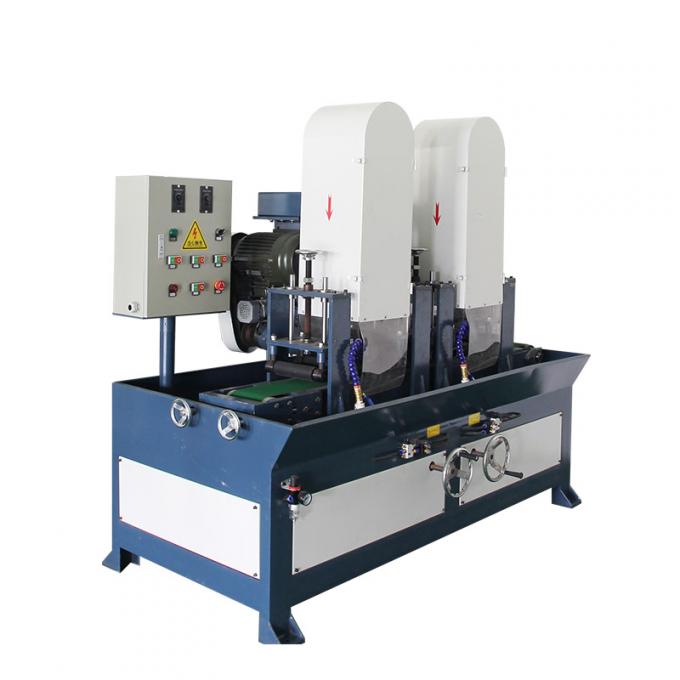

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 4

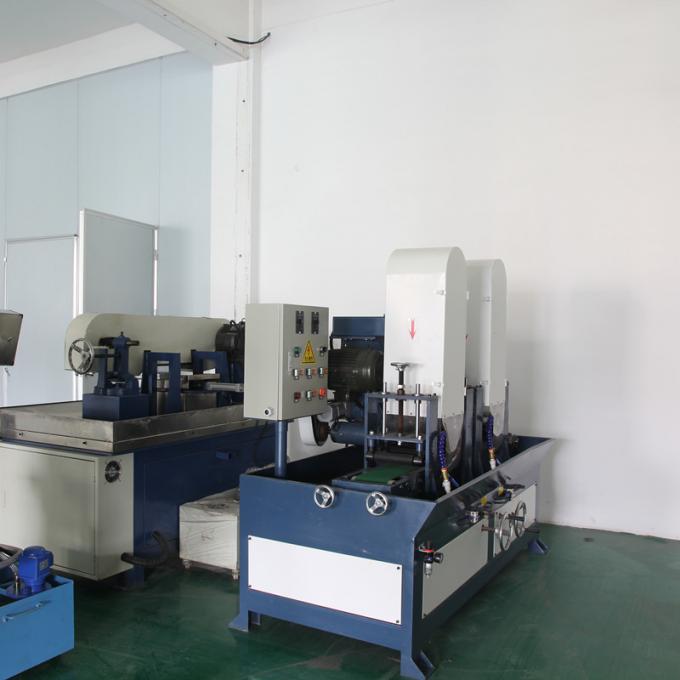

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 5
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 6
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 7

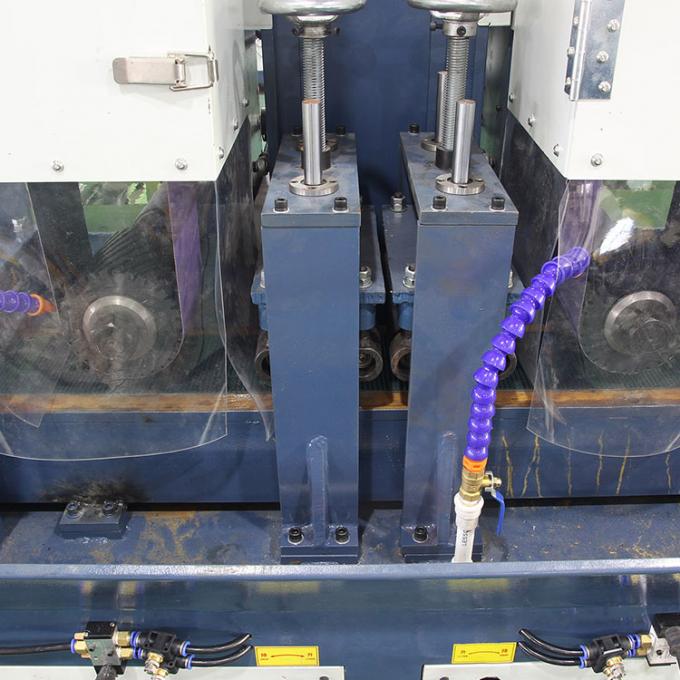

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 8
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 9
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 10

 150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 11

150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 12
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 13
150mm 2 Grinding Conveyor Type Water Drawing Machine Belt Grinder Machines With Water Sanding Machine 14

Q:Are you a factory or a trader?

A:We are a manufacturer(factory)
Q 1:Our company's history and background?
A1:DongGuan Jinzhu Machine Equipment Co.,Itd,Was Founded In 2006.Focusing on the resarch
and development ,production,and sales of industrial machinery and equipment,with over 15 years of industry experience.
Q 2: Our company culture?
A2:We adhere to the core values of "innovation, quality, and service" and are committed to providing customers with the highest quality mechanical equipment and solutions.
Q3:How to view the current development trend of the machinery industry?
A3: We believe that intelligence, automation, and green environmental protection are the main development trends in the current machinery industry, and we will continue to invest in research and development to meet market demand.
Q4: What are your main products?
A4: We mainly produce industrial machinery and equipment, including but not limited to automatic polishing machines, automatic wire drawing machines, automatic spinning machines, etc.
Q5: How to obtain technical support if the device malfunctions?
A5: You can submit a fault report through our customer service hotline or online technical support platform, and our technical team will respond as soon as possible and provide a solution
Q6: To Which Countries Are The Products Mainly Exported?
A6: Our Products Have Been Exported To Multiple Countries And Regions Around The World, Including Europe, North America, Southeast Asia, Etc..
Q7: Do you accept customized requirements?
A7: Yes, we accept customized needs from customers and can design and produce mechanical equipment according to their specific requirements.
Q8: How to conduct product procurement?
A8: You can obtain product quotations and procurement process information through our official website or by contacting a sales representative.
