Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width

8 Grinding Heads Coil Polishing Machine

52kw Power Automatic Polishing Machine

350mm Processing Width CNC Polishing Machine

Place of Origin:

Guangdong, China

Brand Name:

JINZHU

Contact Us
Request A Quote
Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width
Product Details
Power:
52 KW
Weight:
3500 Kg
Dimensions:
4000*1400*1800 Mm
Voltage:
380V/50Hz
Main Power:
5.5 KW*8
Processing Width:
350 Mm
Speed:
2100 R/min
Source Pressure:
≥0.55 MPa
Working Thickness:
0.5~3 Mm
Elevating Motor:
0.75 KW*8
Polishing Wheel Spec:
400*300 Mm
Polishing Transfer Rate:
0-10 M/min (adjustable)
Spindle Speed:
2100 R/min
Core Components:
PLC, Engine, Bearing, Motor
Grinding Heads:
8
Highlight:

8 Grinding Heads Coil Polishing Machine

,

52kw Power Automatic Polishing Machine

,

350mm Processing Width CNC Polishing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$60,869
RELATED PRODUCTS
Good price 8 Heads Automatic Coil Polishing Machine with 2100r/min Speed 0.55MPa Source Pressure and Double Sided Polishing online

8 Heads Automatic Coil Polishing Machine with 2100r/min Speed 0.55MPa Source Pressure and Double Sided Polishing

Get Best Price
Good price High Power 52kw Heavy Duty 3500kg Metal Coil Polishing Machine with 350mm Processing Width online

High Power 52kw Heavy Duty 3500kg Metal Coil Polishing Machine with 350mm Processing Width

Get Best Price
Good price High-accuracy Eco-Friendly Multifunctional 8 Heads Automatic Coil Polishing Machine for Stainless Steel online

High-accuracy Eco-Friendly Multifunctional 8 Heads Automatic Coil Polishing Machine for Stainless Steel

Get Best Price
Good price 52kw Power CNC Polishing Machine with 350mm Processing Width and 2100r/min Speed for High Efficiency online

52kw Power CNC Polishing Machine with 350mm Processing Width and 2100r/min Speed for High Efficiency

Get Best Price
Contact Us
Contact Now
Product Description
Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine
High-performance automatic polishing machine designed for roll metal processing of steel and copper materials.

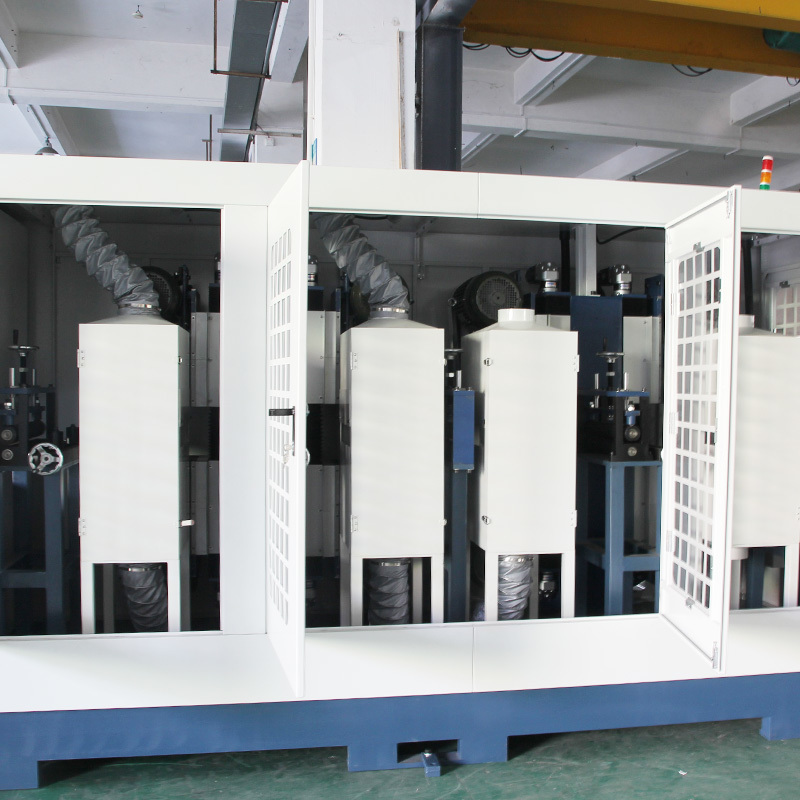

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 0

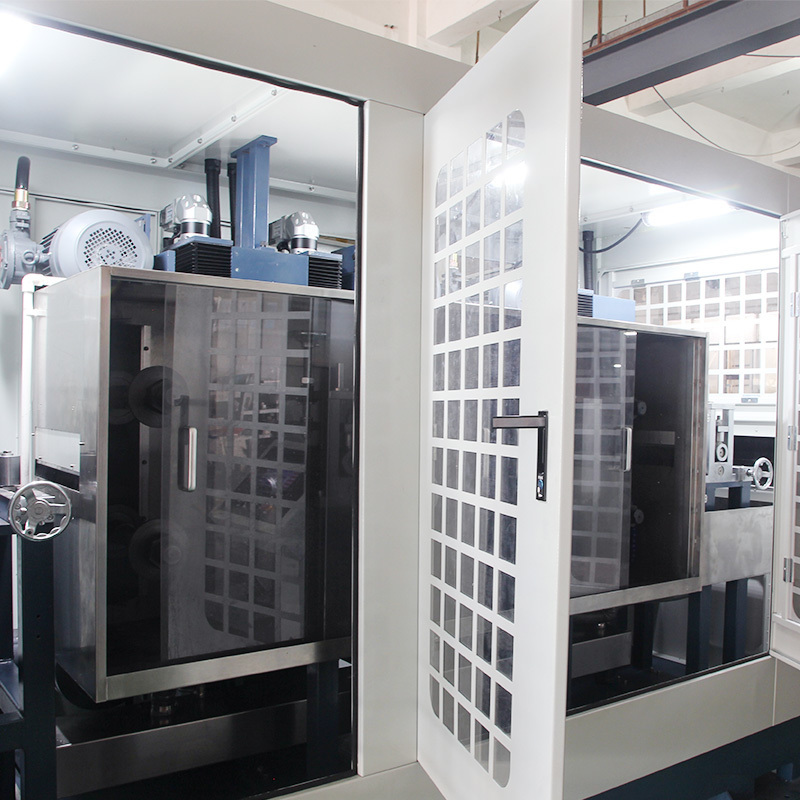

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 1

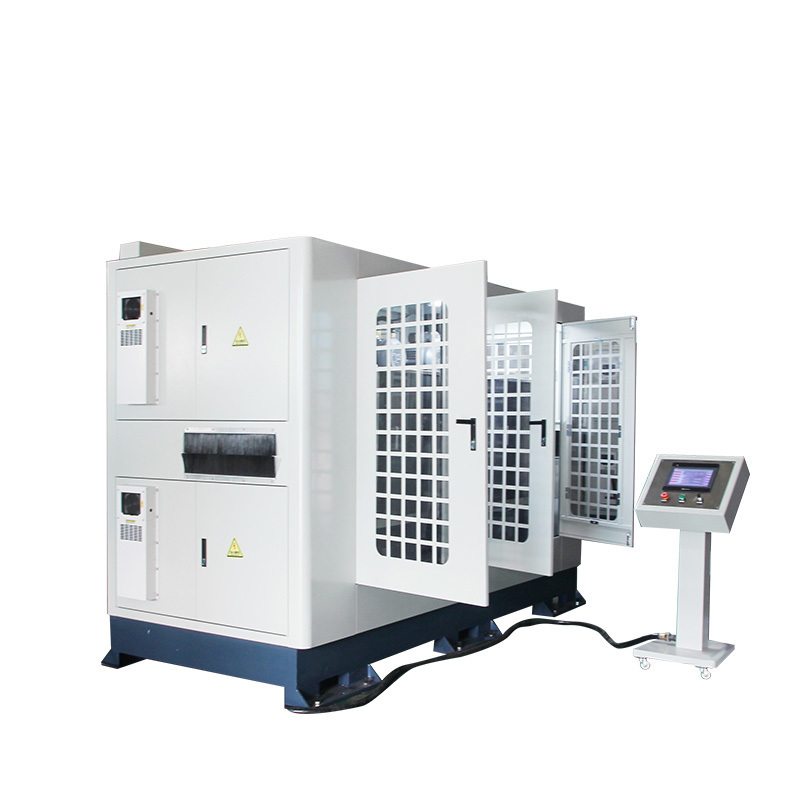

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 2
Key Features
  • Factory-direct manufacturing for quality assurance
  • 8 grinding heads for efficient processing
  • Automatic operation for consistent results
  • Ideal for steel and copper roll metal polishing
  • Free sample testing service available
Technical Specifications
Parameter Value
Working width 350mm
Working thickness 0.5~3mm
Elevating motor 0.75kw*8
Weight 3500kg
Polishing wheel specification 400*300mm
Total Power 52kw
Main Power 5.5kw*8
Polishing transfer rate 0-10M/min (adjustable)
Source pressure ≥0.55MPa
Spindle speed 2100r/min
Size 4000*1400*1800mm

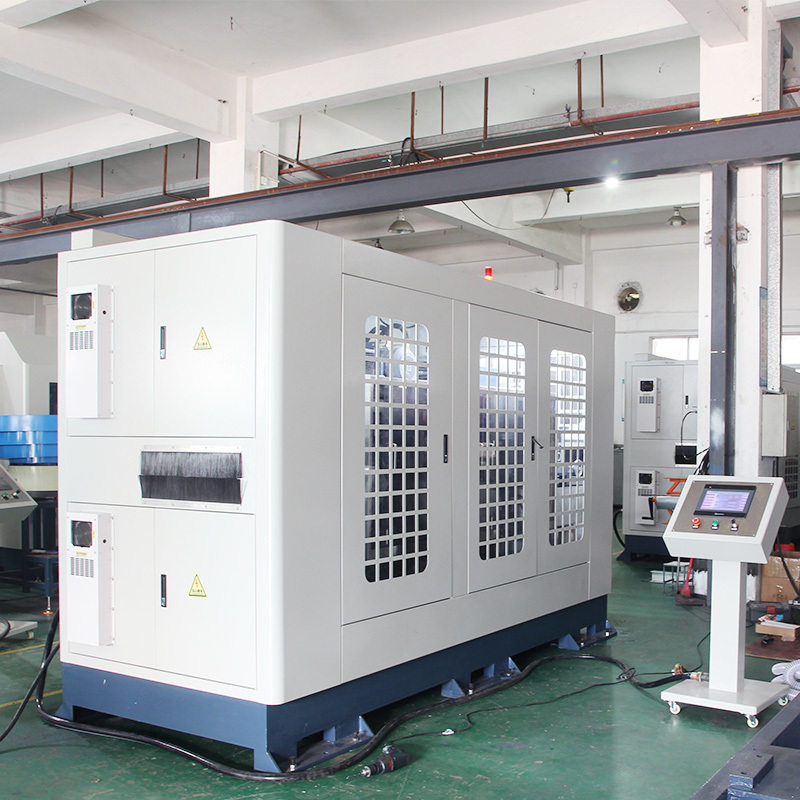

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 3

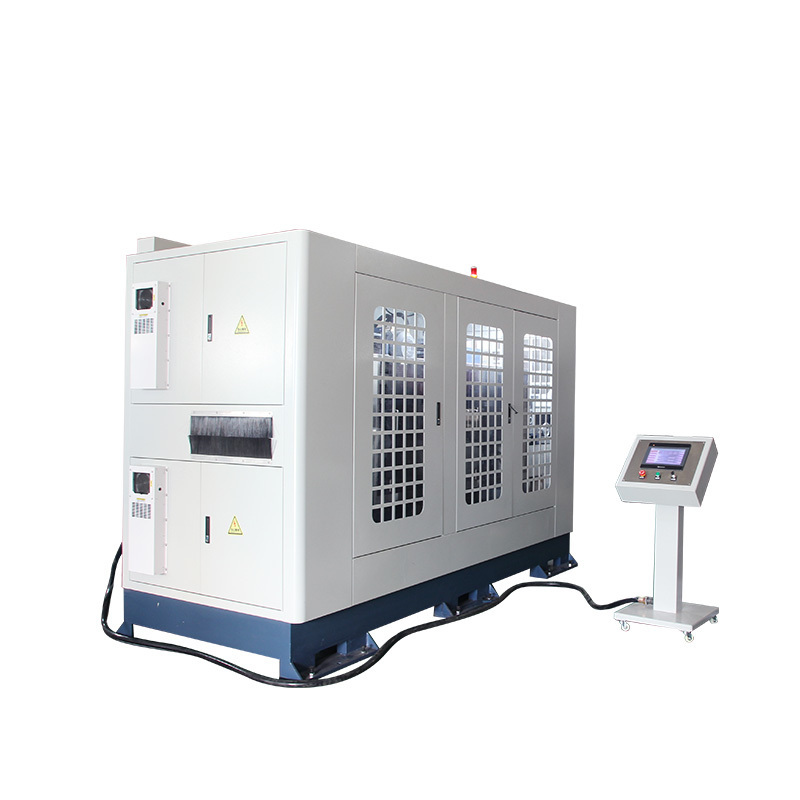

Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 4
Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 5
Factory Direct 8 Grinding Heads Automatic Coil Polishing Machine with 52kw Power and 350mm Processing Width 6
Company Information
We are a manufacturer (factory) with over 15 years of industry experience.
Frequently Asked Questions
Q: What is your company's history and background?
A: DongGuan Jinzhu Machine Equipment Co., Ltd was founded in 2006, focusing on the research and development, production, and sales of industrial machinery and equipment.
Q: What are your main products?
A: We mainly produce industrial machinery and equipment, including automatic polishing machines, automatic wire drawing machines, and automatic spinning machines.
Q: Do you accept customized requirements?
A: Yes, we accept customized needs from customers and can design and produce mechanical equipment according to specific requirements.
Q: How to obtain technical support if the device malfunctions?
A: You can submit a fault report through our customer service hotline or online technical support platform for prompt response and solution.
