5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing

5 Axis CNC Polishing Machine

10 kW Power CNC Polishing Machine

2800 kg Weight CNC Polishing Machine

Place of Origin:

Guangdong, China

Brand Name:

JINZHU

Request A Quote

5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing

Product Details

Power:

10 KW

Weight:

2800 Kg

Dimension:

2200*2480*2365 Mm

Material:

Metal

Z-axis Motor:

2.3 KW

X-axis Motor:

2.0 KW

Y-axis Motor:

2.0 KW

A-axis Motor:

1 KW

C-axis Motor:

1 KW

Voltage:

380-50 Hz

Power Consumption:

9.5 KW

Min Size:

45 X 60 Mm

Max Size:

Diagonal ≤190 Mm

Max Height:

20x80 Mm

Air Pressure:

0.4 Mpa

Highlight:

5 Axis CNC Polishing Machine

10 kW Power CNC Polishing Machine

2800 kg Weight CNC Polishing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$47,000-48,000

8 Heads Automatic Coil Polishing Machine with 2100r/min Speed 0.55MPa Source Pressure and Double Sided Polishing

Get Best Price

High Power 52kw Heavy Duty 3500kg Metal Coil Polishing Machine with 350mm Processing Width

Get Best Price

High-accuracy Eco-Friendly Multifunctional 8 Heads Automatic Coil Polishing Machine for Stainless Steel

Get Best Price

52kw Power CNC Polishing Machine with 350mm Processing Width and 2100r/min Speed for High Efficiency

Get Best Price

Contact Now

Product Description

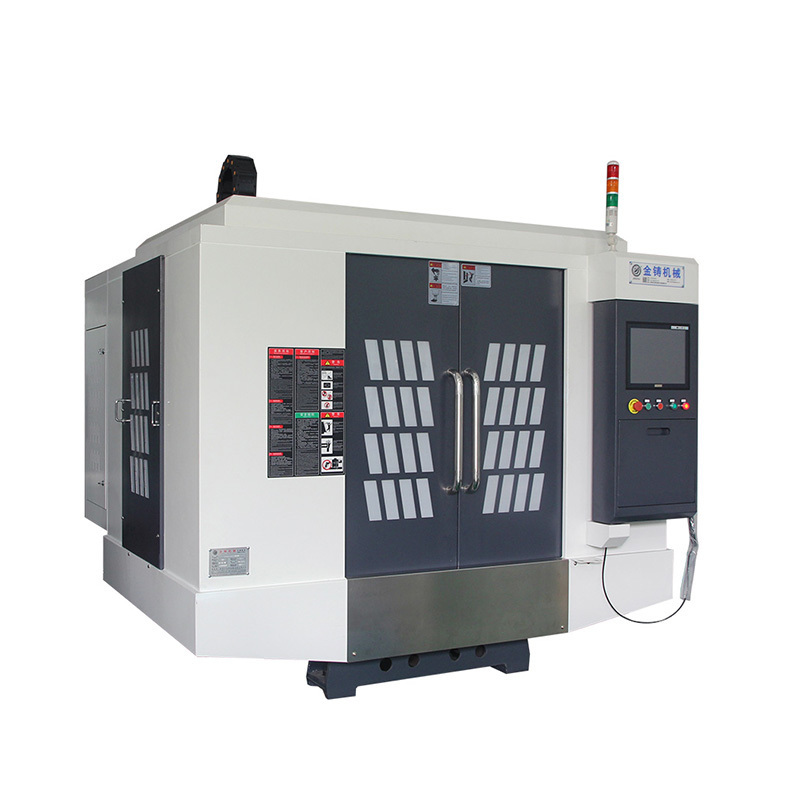

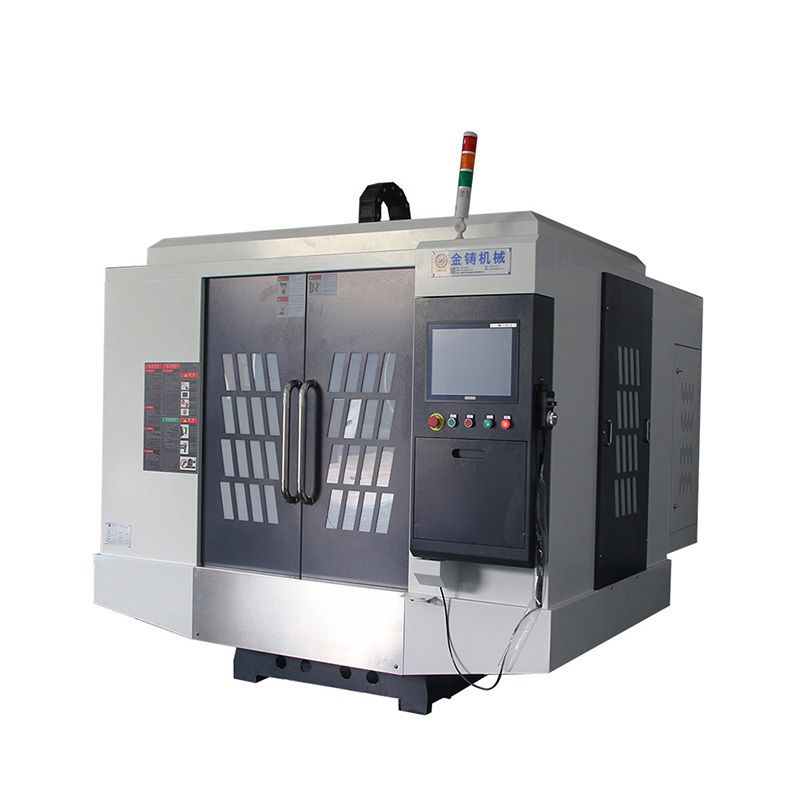

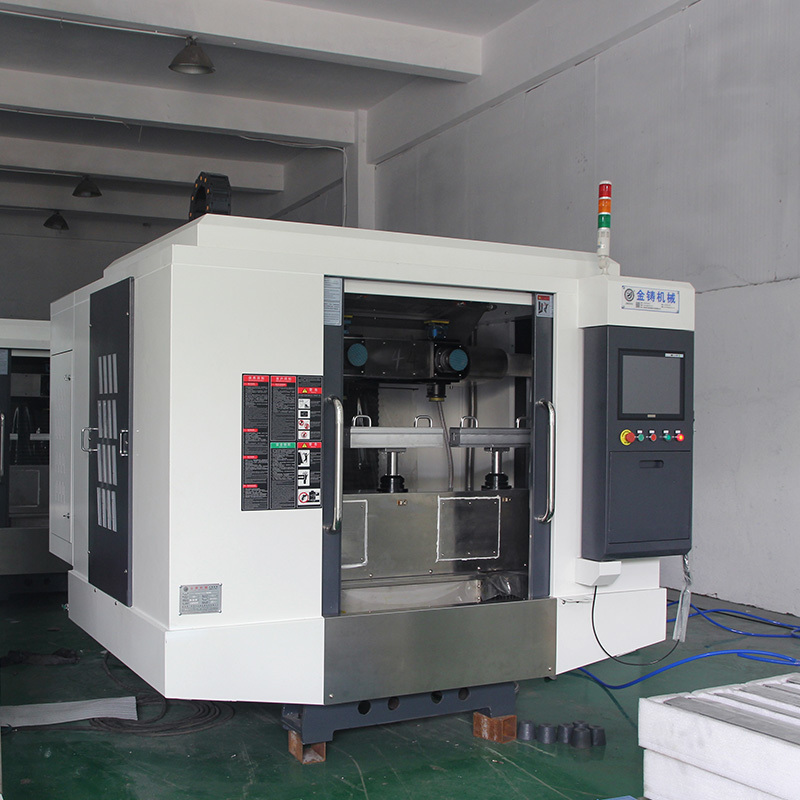

5-Axis CNC Polishing Machine - Vertical Machining Center

This 5-axis linkage CNC polishing equipment features automated operation with CNC control system programming. The product is manually fixed on vacuum suction fixtures, with precision motors driven by G-code to follow product contours. The grinding head applies pressure with sandpaper or other consumables for precise surface polishing.

Technical Specifications

Core Components	PLC, Engine, Motor
Power	10 kW
Z-axis Servo Motors	2.3 kW
X-axis Servo Motors	2.0 kW
Y-axis Servo Motors	2.0 kW
A/C-axis Rotary Servo Motors	1 kW each
Machine Dimensions	2200 × 2480 × 2365 mm
Weight	2800 kg
Warranty	1 Year

Key Features

Five work turntables operate synchronously for simultaneous processing
Optimized for grinding phone shell arc surfaces and side arcs
High productivity with consistent quality output
Dust-free operation with water spray system for environmental protection
CNC control system with five-axis linkage motion profile
High-precision interpolation with rapid response
Automatic control with monitoring, counting, and alarm functions

Operation Details

The system performs automatic grinding with programmable G-code for different products. Single-action operation is available for machine adjustment. The equipment features water spray for dust control, cooling, and decontamination.

Product Size Compatibility

Minimum size: 45 × 60mm
Maximum size: Diagonal ≤ 190mm
Lower tilt radian angle: <18°
Height: Adjustable up to 20 × 80mm (customizable)

Power Requirements

Three-phase 380V 50/60Hz 8.5 KVA
Requires stable power supply without instantaneous outages
Recommended: Uninterruptible power supply for production continuity

Air Supply

Factory air pressure ≥0.4 MPa (dry air required)
Consumption: ≥40L/min
Recommended pressure tank: ≥50L capacity at ≥0.75 kgf/cm²

Manufacturer Information

DongGuan Jinzhu Machine Equipment Co., Ltd. has specialized in industrial machinery R&D and production since 2006. Our core values emphasize innovation, quality, and service to deliver advanced automation solutions.

Frequently Asked Questions

Q: Are you a factory or trader?

A: We are the manufacturer with 15+ years experience.

Q: Do you accept custom requirements?

A: Yes, we can design equipment according to your specifications.

Q: What technical support is available?

A: Our team provides prompt response through hotline or online support.

Q: Where are your products exported?

A: We serve global markets including Europe, North America, and Southeast Asia.
