JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power

JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power

2 Axis CNC Polishing Machine

380V 50Hz Wire Drawing Machine

9.15KW Metal Polishing Machine

Place of Origin:

Guangdong, China

Brand Name:

Jinzhu

Certification:

CE ISO9001

Contact Us
Request A Quote
JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power
Product Details
Power:
9.15KW
Weight:
1600kg
Voltage:
380V 50Hz
Machine Size:
2100*1100*1500mm
Table Swing Frequency:
70times/min
Main Motor:
7.5KW
Servo Motor:
0.75KW
Belt Wire Speed:
16m/s
Table Size:
150*550mm
Consumable Specification:
100*3000mm
Lifting Height:
0~100mm
Advance Retreat Stroke:
300mm
Retraction Servo:
0.75KW
Core Components:
PLC, Motor
Total Power:
9.15KW
Highlight:

2 Axis CNC Polishing Machine

,

380V 50Hz Wire Drawing Machine

,

9.15KW Metal Polishing Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$14,500-16,500
RELATED PRODUCTS
Good price 8 Heads Automatic Coil Polishing Machine with 2100r/min Speed 0.55MPa Source Pressure and Double Sided Polishing online

8 Heads Automatic Coil Polishing Machine with 2100r/min Speed 0.55MPa Source Pressure and Double Sided Polishing

Get Best Price
Good price High Power 52kw Heavy Duty 3500kg Metal Coil Polishing Machine with 350mm Processing Width online

High Power 52kw Heavy Duty 3500kg Metal Coil Polishing Machine with 350mm Processing Width

Get Best Price
Good price High-accuracy Eco-Friendly Multifunctional 8 Heads Automatic Coil Polishing Machine for Stainless Steel online

High-accuracy Eco-Friendly Multifunctional 8 Heads Automatic Coil Polishing Machine for Stainless Steel

Get Best Price
Good price 52kw Power CNC Polishing Machine with 350mm Processing Width and 2100r/min Speed for High Efficiency online

52kw Power CNC Polishing Machine with 350mm Processing Width and 2100r/min Speed for High Efficiency

Get Best Price
Contact Us
Contact Now
Product Description

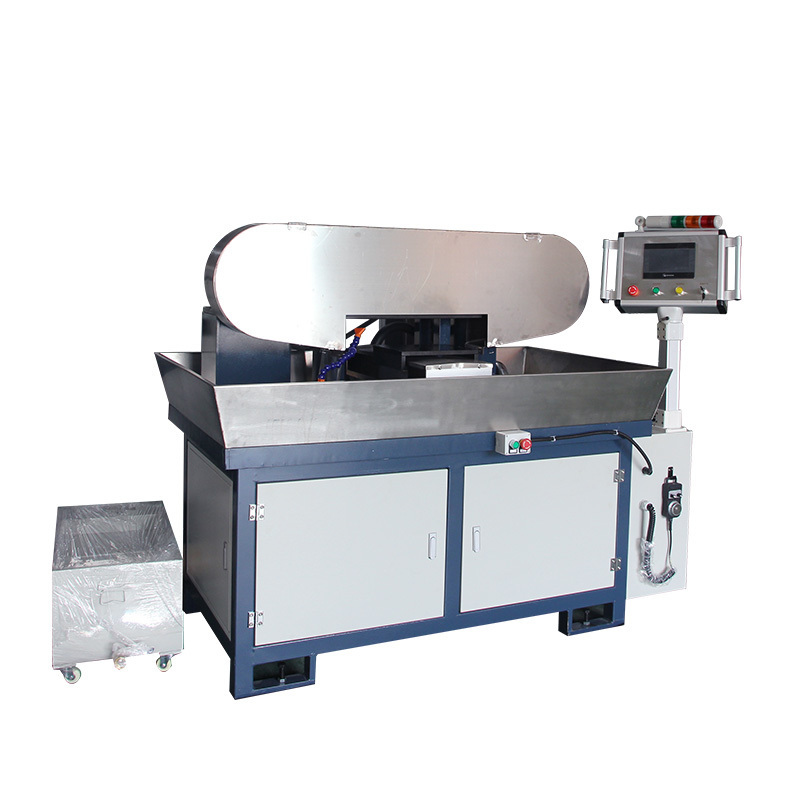

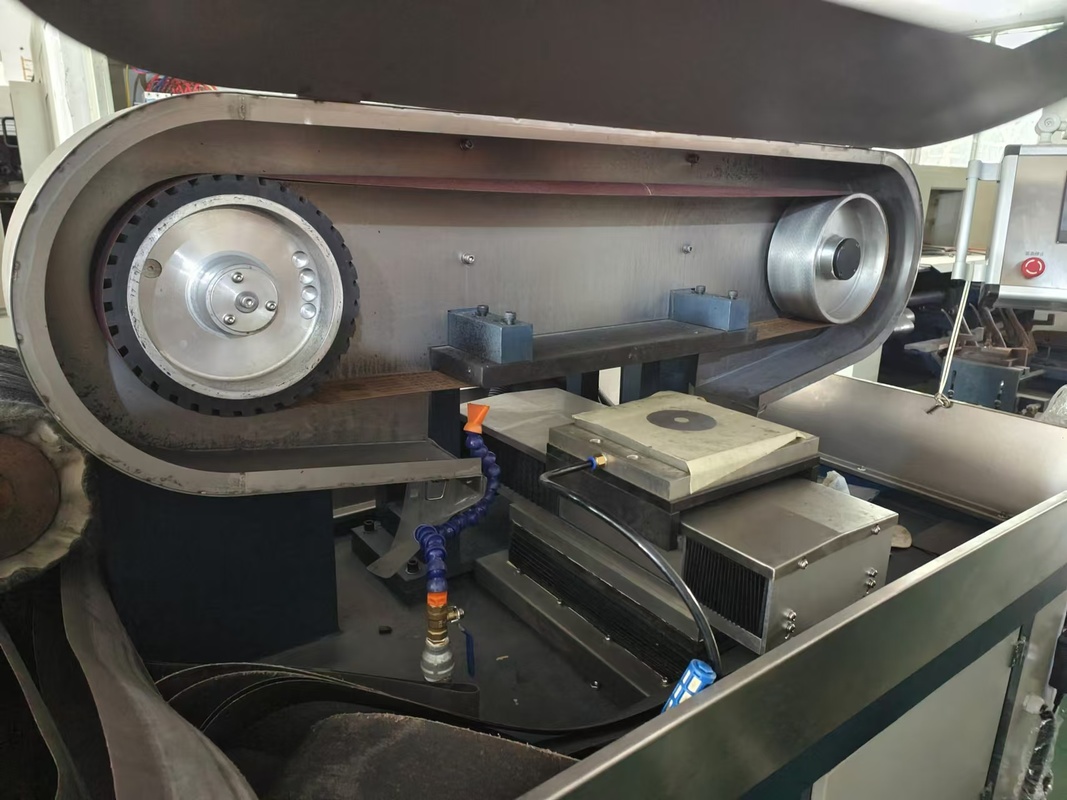

JINZHU Lock Panel 2 Axis CNC Wet Wire Drawing Machine
Product Overview
High-performance CNC wet wire drawing machine designed for stainless steel polishing and grinding applications, featuring precise 2-axis control and efficient wet processing technology.
JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 0 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 1 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 2
Technical Specifications
Parameter Specification
Product Name JINZHU Lock Panel 2 Axis CNC Wet Wire Drawing Machine
Sample Service Free polishing service available for sample evaluation
Supply Voltage 380V-50HZ
Machine Size 2100×1100×1500mm
Total Power 9.15KW
Table Swing Frequency 70times/min
Main Motor 7.5KW
Servo Motor 0.75KW
Belt Wire Speed 16m/s
Table Size 150×550mm
Consumable Specification 100×3000mm
Lifting Height 0~100mm
Advance and Retreat Stroke 300mm
Retraction Servo 0.75KW
JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 3 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 4 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 5
Virtual Experience
JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 6
Company Information
DongGuan Jinzhu Machine Equipment Co., Ltd is a professional manufacturer founded in 2006 with over 15 years of experience in industrial machinery production and development.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a manufacturer (factory)
Q: What is your company's history and background?
A: Founded in 2006, we specialize in research, development, production, and sales of industrial machinery with over 15 years of industry experience.
Q: Do you accept customized requirements?
A: Yes, we accept customized needs and can design equipment according to specific requirements.
Q: How to obtain technical support?
A: Submit fault reports through our customer service hotline or online technical support platform for prompt response.
JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 7 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 8 JINZHU 2 Axis CNC Wet Wire Drawing Machine for Stainless Steel Polishing with 380V 50Hz and 9.15KW Power 9
