Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JINZHU

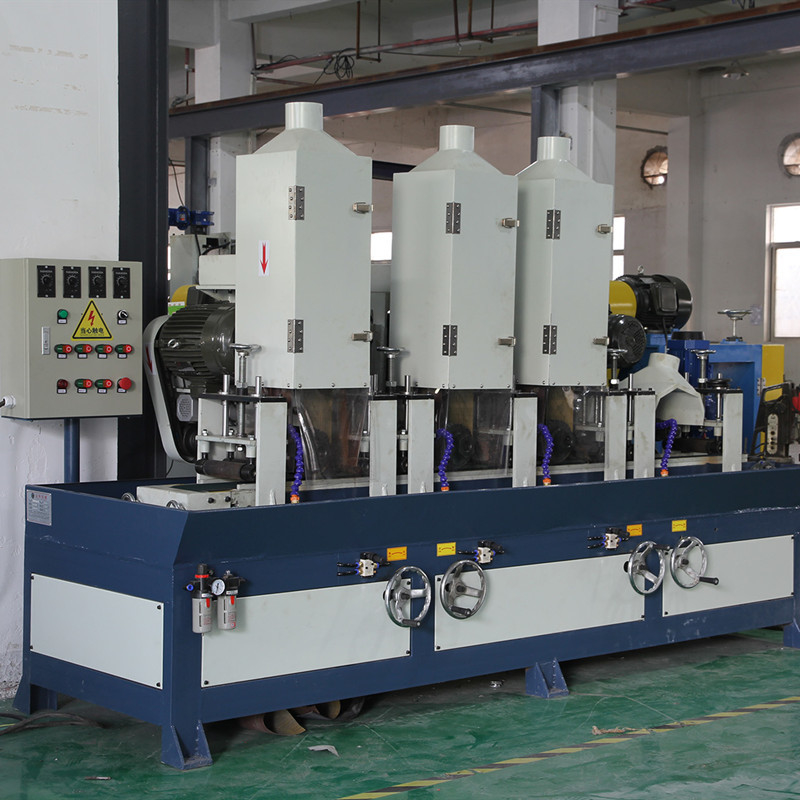

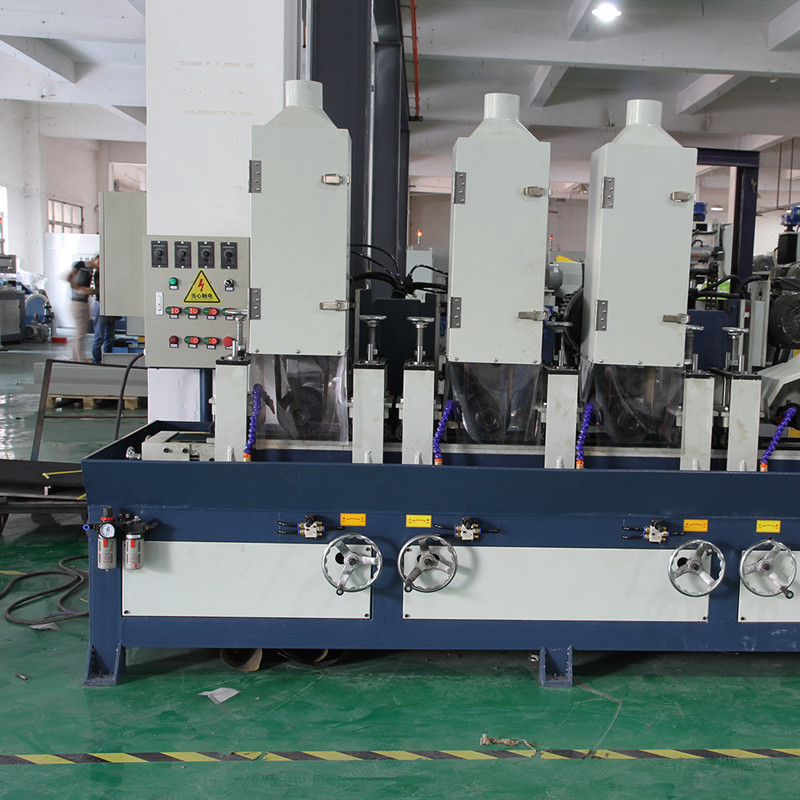

Item: 3 units 150mm Automatic machine for grinding flat surfaces bathroom fittings
It is suitable for plane polishing and wire drawing of metal trim strip, lock panel, switch panel and other
hardware and plastic products. The machine has two grinding heads, three grinding heads, five grinding
heads, circulating conveying type and other models. Customers can order according to the processing
needs.
1. Power supply voltage 380V-50hz
2. Main power 4kw
3. Total power 13.42kw
4. Spindle speed 1800r/min
5. Water pump 0.15kw
6. Consumable specifications Abrasive belt 150X2100mm
7. Consumable specifications Polishing Φ 250*700mm
8. Air pressure 0.55mpa
9. Processing range Width 10-150mm Thickness 1-100mm
10. Conveying speed 0-8m adjustable
11. Machine dimensions 3x1.2x1.9m l * w * h
