6 units Special automatic machine for grinding flat parts Grinding satin polishing

6 units Special automatic machine for grinding flat parts Grinding satin polishing
6 units Special automatic machine for grinding flat parts Grinding satin polishing 6 units Special automatic machine for grinding flat parts Grinding satin polishing 6 units Special automatic machine for grinding flat parts Grinding satin polishing 6 units Special automatic machine for grinding flat parts Grinding satin polishing 6 units Special automatic machine for grinding flat parts Grinding satin polishing

Large Image :  6 units Special automatic machine for grinding flat parts Grinding satin polishing

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: JINZHU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Name: Automatic Cookware Spinning Machine
Max Circle Diameter: 500mm Circle Height: 0.4-2.0mm
Max Product Height: 10-150mm Height Of Spindle Center: 10-150mm
Axial Stroke: 10-150mm Radial Stroke: 10-150mm
The Tail Against Stroke: 10-150mm Accurancy: 0.01mm
After Sales Service: Engineer Overseas Service Avalible
High Light:

cnc buffing machine

,

cnc metal spinning machine

Item: 6 units Special automatic machine for grinding flat parts Grinding satin polishing

 6 units Special automatic machine for grinding flat parts Grinding satin polishing 0

1. Detailed information

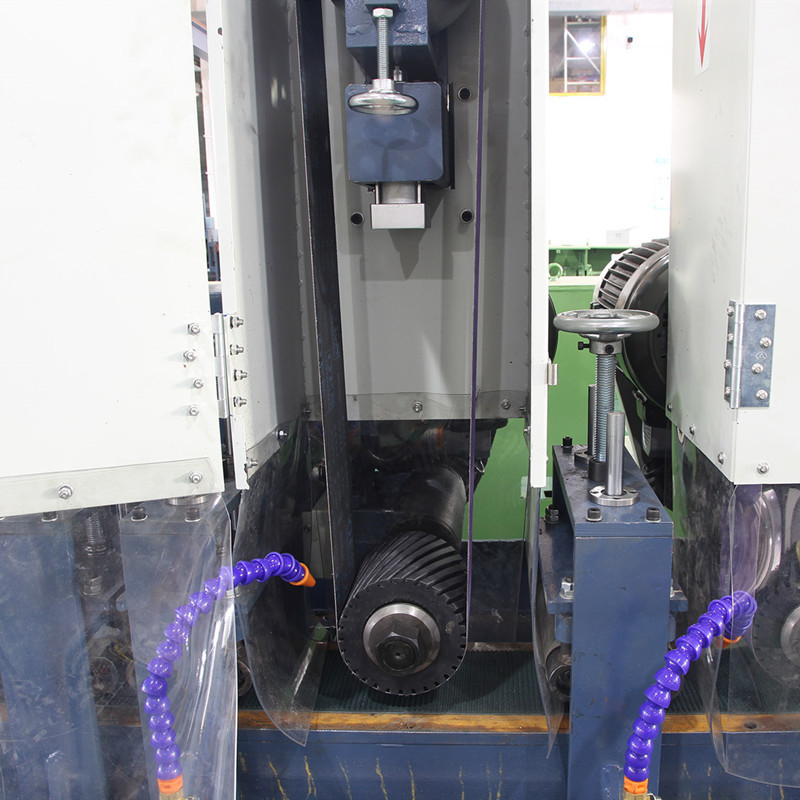

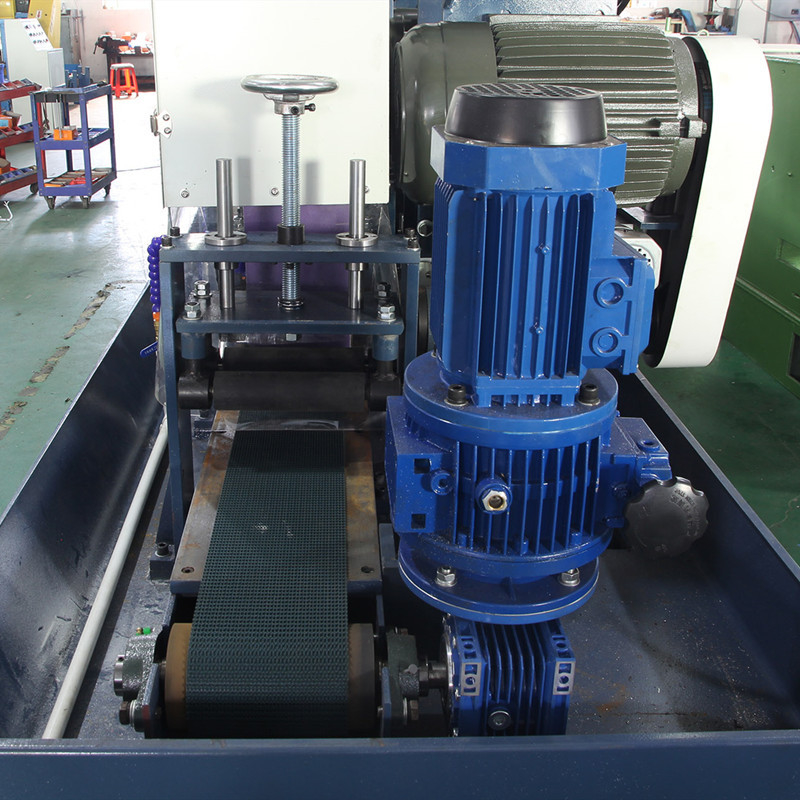

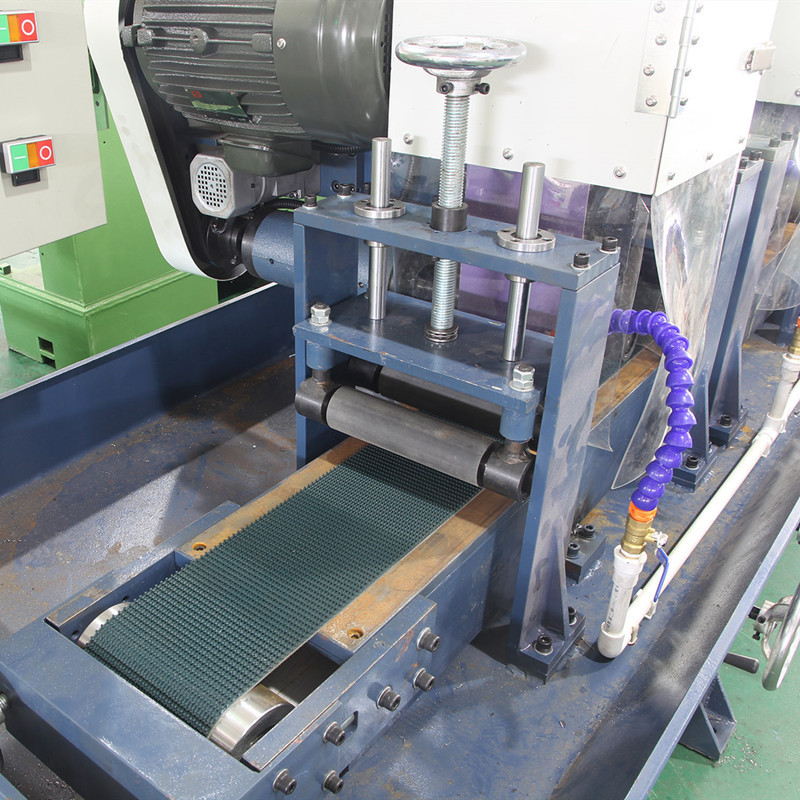

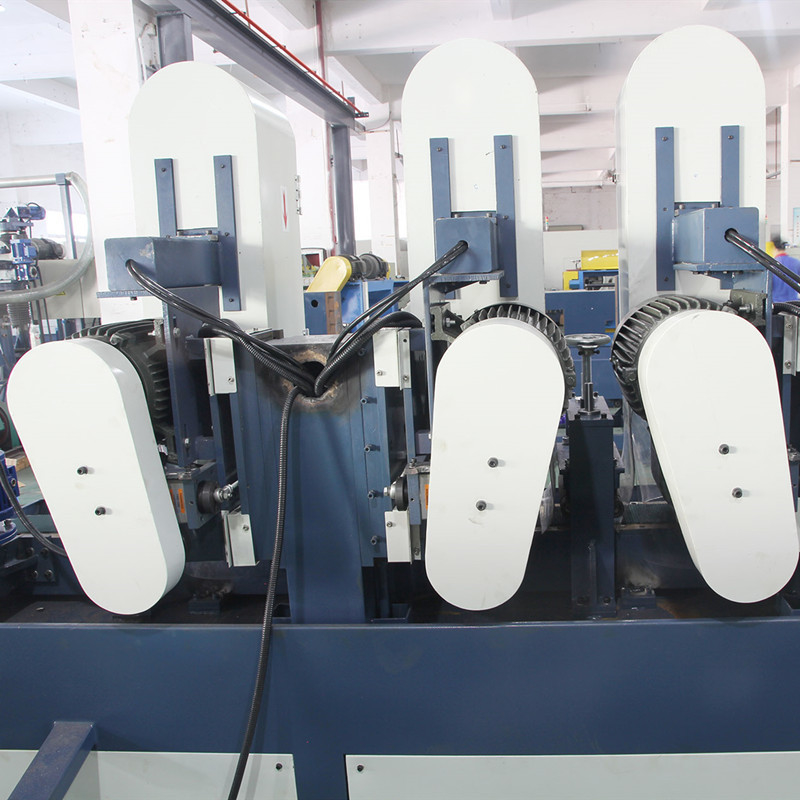

It is suitable for plane polishing and wire drawing of metal trim strip, lock panel, switch panel and other
hardware and plastic products. The machine has two grinding heads, three grinding heads, five grinding
heads, circulating conveying type and other models. Customers can order according to the processing
needs.

1. Power supply voltage 380V-50hz

2. Main power 4kw

3. Total power 21.82kw

4. Spindle speed 1800r/min

5. Water pump 0.15kw

6. Consumable specifications Abrasive belt 150X2100mm

7. Consumable specifications Polishing Φ 250*700mm

8. Air pressure 0.55mpa

9. Processing range Width 10-150mm Thickness 1-100mm

10. Conveying speed 0-8m adjustable

11. Machine dimensions 4.6x1.65x1.9m l * w * h



2. Aplication and Usage



1.) Use for aluminum plates, copper plate,iron plates and stainless steel plate

2.) From circle to be finished cover(one time finish)

3.) This machine use for LED cover, Cookware, kettle







3. Packaging and Transportation



the cookware spinning machine will be packaged in wooden case or container, and will be shipped in 25-30 days.

6 units Special automatic machine for grinding flat parts Grinding satin polishing 1



4. Workshop

  we have our own factory specializing in the production of the CNC metal spinning machine, you can come to our factory to know all about the CNC metal spinning machine.





5. Thoughtful Pre-sale and After-sale Service



1.) we can help you train your staff.

2.) we will send engineer to help you install the machine, and guide your staff on site until your works can produce the qualified products.

3.) the warranty period is one year, if you have any question in using the machine, you can call us or send email, and we will solve the problem for your asap.





6. About Us



 As a professional manufacturer of the polishing machine, grinding machine, CNC spinning machine and so on metal surface treatment machine for more than years in China, with best quality, best service and competitive price, and we are 6th year Gold supplier.





 7. Our customers

the spinning machines have been well receive and trusted by customer in mainland China, HongKong, Southest Asia and other countries or regions.



Please fell free to contact us for your requirement, we will try our best to do the service for you. thank you.
