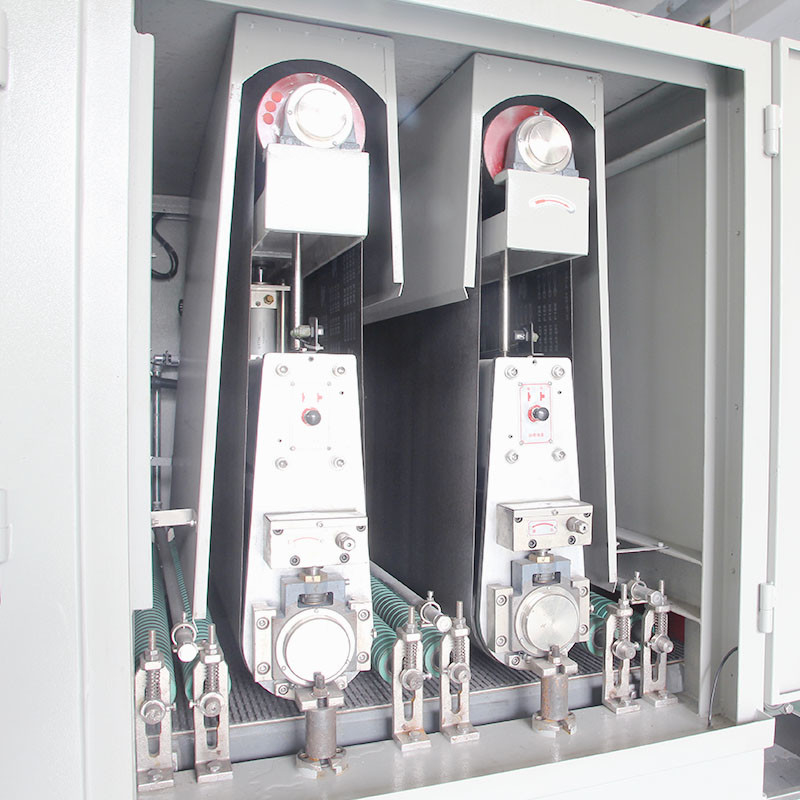

Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet

Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet

Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet

Large Image :  Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $20,000.00/sets
Packaging Details: Standard Export package
Detailed Product Description
Inlet Diameter: 60-1300 Outlet Diameter: 60-1300
Core Components: Motor, PLC Voltage: 380V
Power: 27.87 Dimension(L*W*H): 2.8*2.4*2.1
Weight: 3500, 3500KG Key Selling Points: Easy To Operate
Applicable Industries: Machinery Repair Shops Product Name: Automatic Wire Drawing Machine
High Light:

PLC Flat Sander Machine

,

1300mm Flat Sander Machine

,

1300mm Metal Sanding Machine

1300mm Stainless Steel sheet Flat Sander Cutting Products Polishing Machine
Product Description
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 0
Technical parameter 1) According to the width and thickness of the customer's plate, the water sanding machine with the following processing widths can be customized: 600mm - 1300mm 2) Optional grinding rollers: single-sand, double-sand, three-sand, four-sand, five-sand. And the polishing stick modular combination
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 1
Purpose/Field of Application ★ Treatment of abrasive grains ★ Surface rust removal of metal plate, polishing/wood-plastic plate, laminated steel plate, rubber plate plane sanding and polishing ★ Removal of the long-lasting oxide skin on the workpiece surface and the oxide skin in the hole. ★Stainless steel template, stainless steel decorative plate, copper foil substrate (CCL), printed circuit board (PCB) plane sanding and polishing ★ Processing of workpiece burr/surface polishing for stamping workpiece/laser cutting/flame cutting/plasma cutting ★ Polishing of various extruded profiles in the building materials industry ★ Sanding, hairline, wire drawing, grinding and polishing of stainless steel sheet, aluminum sheet, magnesium alloy sheet, titanium alloy sheet, copper sheet and other materials.
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 2
Specification
item
value
Condition
New
Inlet Diameter
60-1300
Outlet Diameter
60-1300
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor, PLC
Place of Origin
China

Guangdong
Brand Name
JINZHU
Voltage
380V
Power
26.87
Dimension(L*W*H)
2.8*2.4*2.1
Weight
2500
Year
2022
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Machinery Repair Shops
Showroom Location
None
After-sales Service Provided
Online Support
Product Name
Automatic Wire Drawing Machine
Drawing material
Stainless Steel Wire
Usage
Metal Wire Drawing
Name
Wire Drawing Mchine
Application
Wire Drawing Process
Warranty
1 Year
Weight
3500KG
Suitable material
Metal Wire
Function
Mechanical Wire Descaling Machine
Working module combination R=sanding roller P=polishing wheel Conveying mode: roller pressing feeding / permanent magnet adsorption feeding
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 3
Packing & Delivery
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 4
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 5
Polishing grade
No.1: After hot rolling, annealing, pickling and descaling. The surface of the treated steel sheet is a dull surface, somewhat
rough.

No.2D: It is better than N0.1, and it is also a dull surface. After cold rolling, annealing, descaling, and finally light rolling
with rough rolls.

No.2B: This is the most commonly used in architectural applications, except that after annealing and descaling, a final light cold
rolling with a polishing roll is performed, the other process is the same as 2D, the surface is slightly shiny, and can be
polished.

No.2B Bright Annealed: This is a reflective surface that is rolled with polished rolls and final annealed in a controlled
atmosphere. Bright annealing still retains its reflective surface and does not produce scale.

No. 3: represented by 3A and 3B. "
3A: The surface is uniformly ground, and the abrasive grain size is 80-100.
3B: The rough surface is polished, and the surface has uniform straight grains. Usually, it is polished on the 2A or 2B board with
an abrasive belt with a particle size of 180-200.

No.4: One-way surface finish, not very reflective, this finish is probably the most versatile in architectural applications. The
process steps are firstly polishing with coarse abrasives, and finally grinding with abrasives with a particle size of 180.

No. 6: It is a further improvement of No. 4. It is polished with a Tampico polishing brush in abrasive and oil media. 4 surfaces.
This surface finish is not included in "British Standard 1449", but is available in American Standard.

No.7: Known as bright polishing, it is polishing the surface that has been ground very finely but still has scratches.
Usually a 2A or 2B plate is used, with a fiber or cloth polishing wheel and the corresponding polishing paste.

No.8: Mirror polished surface with high reflectivity, often called mirror finish because it reflects a clear image. Continuous
polishing of stainless steel with a fine abrasive, followed by a very fine polishing paste.

Surface finish level 14 = Ra 0.012
Surface finish level 13 = Ra 0.025
Surface finish level 12=Ra 0.050
Surface finish level 11 = Ra 0.1
Surface finish grade 10 = Ra 0.2
Surface finish grade 9 = Ra 0.4
Surface finish grade 8 = Ra 0.8
Surface finish grade 7 = Ra 1.6
Surface finish grade 6 = Ra 3.2
Surface finish grade 5 = Ra 6.3
Surface finish grade 4 = Ra 12.5
Surface finish level 3 = Ra 25
Surface finish class 2 = Ra 50
Surface finish class 1 = Ra 100
The above surface roughness units are all μm, that is, microns.
Are there different size belt sanders?
What is a wide belt sander used for?
What is the top rated belt sander?
How wide are belt sanders?
What is brushed metal?
Company Profile
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 6
Cutting Polishing Flat Sander Machine 1300mm Stainless Steel Sheet 7
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(24.00%),Mid East(23.00%),Domestic Market(20.00%),South Asia(15.00%),South America(7.00%),North America(5.00%),Eastern Europe(2.00%),Eastern Asia(1.40%),Central America(0.80%),Oceania(0.50%),Western Europe(0.50%),Northern Europe(0.30%),Africa(0.30%),Southern Europe(0.20%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
OEM & ODM,Finishing Machinessing,Polishing Machine,Deburring Machine,Buffing Machine

4. why should you buy from us not from other suppliers?
A top brand in China, since 2006. A wide range production line, with Specialized to be engaged in various types metal surface treatment machinery. A strong capacity & capability on delivery.Custiomization & Personalization are acceptable as per request.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
