Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts

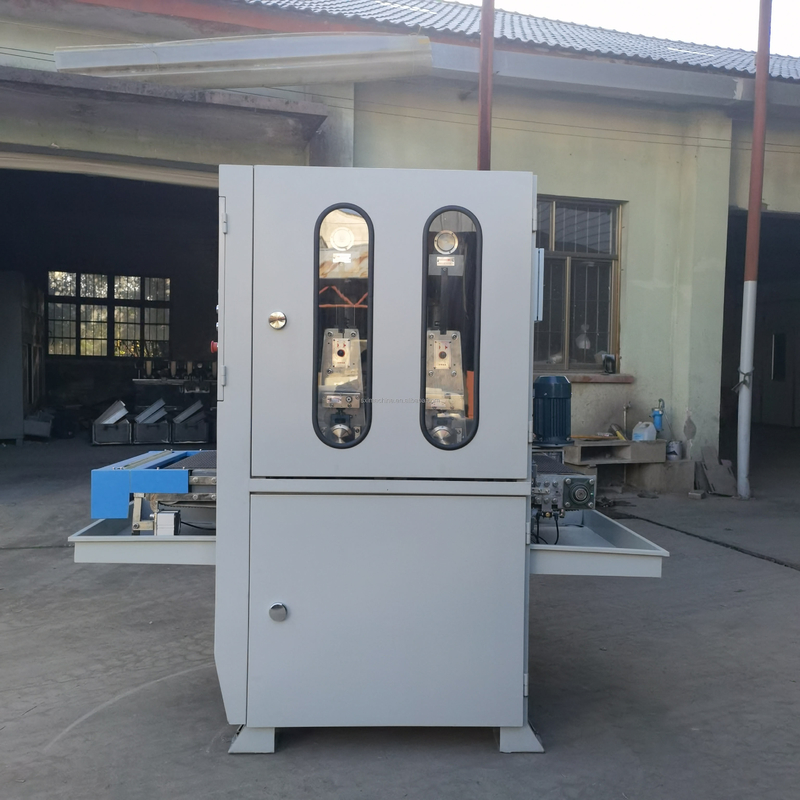

Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts

Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts

Large Image :  Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINZHU
Payment & Shipping Terms:
Price: $14,000.00/sets
Packaging Details: Standard Export package
Detailed Product Description
Condition: New Inlet Diameter: 40-630
Outlet Diameter: 40-630 Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Motor, PLC
Voltage: 380V Power: 27.87
High Light:

Stamping Parts Deburring Polishing Machine

,

Sheet Metal Deburring Polishing Machine

,

Deburring Wide Belt Sander

Automatic Sheet Metal Polishing Deburring Machine for Cutting and Stamping Parts wide belt sander
Product Description
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 0

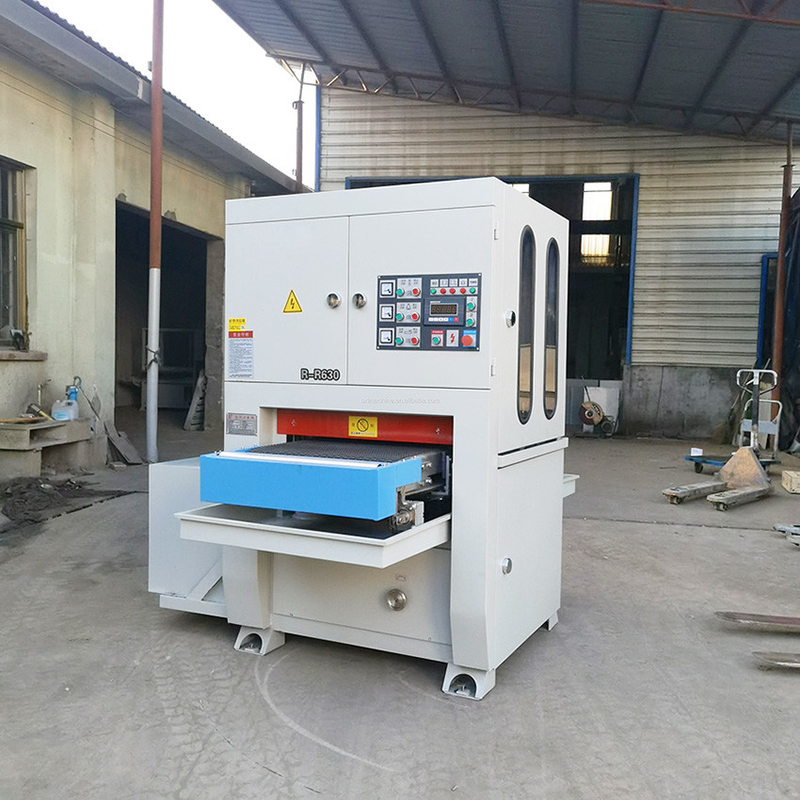

1. The main function R-R630 series models are metal water mill wire drawing equipment. This equipment is suitable for stainless steel, iron plate, copper plate, hand saw, scissors, garden tools, etc. According to the different surface requirements of the workpiece, different meshes and polishing wheels can be adjusted and selected for surface polishing and wire drawing. At the same time, it has the function of dry throwing and deburring: it is mainly used to deal with deburring, workpiece edge, hole deburring effect, beat the workpiece surface, make the contour edges around the workpiece surface and in the hole smooth and round, and realize the wire drawing and deburring of the metal sheet surface. Oxide skin, polishing and other processing. The burrs generated in the processes of stamping, shearing, laser cutting, plasma cutting, etc. can be removed in one and all directions, and the processing process is safe and reliable, so that the workpiece can achieve perfect results.
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 1
2. Principle of working structure The deburring mechanism of this equipment is a wide-width abrasive belt structure, and the abrasive belt mechanism is arranged in a wide width and longitudinal direction. It adopts our patented lifting and belt swing mechanism, which can easily perform high-precision wire drawing on the surface of the workpiece. At the same time, a polishing wheel can be added for fine polishing and wire drawing. The polishing wheel can be lifted and moved laterally. The principle of fixing and conveying mechanism A. It is fixed by pressing roller and conveyed by conveyor belt. The conveying speed can be adjusted by frequency conversion. B. The permanent magnet table is used to absorb iron, and the conveyor belt feeds the material, and the conveying speed can be adjusted by frequency conversion.
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 2
Specification
item
value
Condition
New
Inlet Diameter
40-630
Outlet Diameter
40-630
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor, PLC
Place of Origin
China

Guangdong
Brand Name
JINZHU
Voltage
380V
Power
26.87
Dimension(L*W*H)
2.1*1.9*1.9
Weight
1800
Year
2022
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Machinery Repair Shops
Showroom Location
None
After-sales Service Provided
Online Support
Product Name
Automatic Wire Drawing Machine
Drawing material
Stainless Steel Wire
Usage
Metal Wire Drawing
Name
Wire Drawing Mchine
Application
Wire Drawing Process
Warranty
1 Year
Weight
800KG
Suitable material
Metal Wire
Function
Mechanical Wire Descaling Machine
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 3

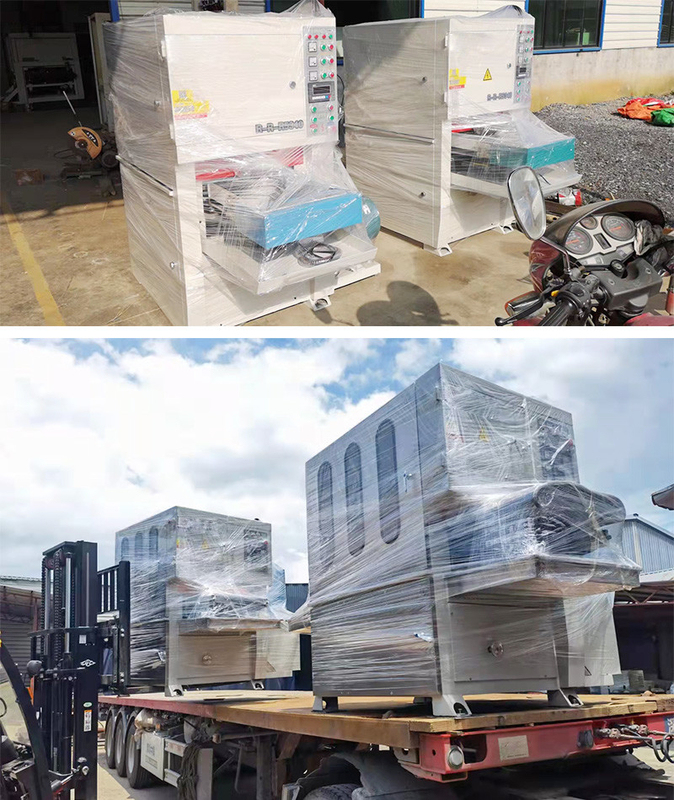

Packing & Delivery
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 4
Are there different size belt sanders?
What is a wide belt sander used for?
What is the top rated belt sander?
How wide are belt sanders?
What is brushed metal? kitchen knife sickle scissors metal water mill wire drawing equipment The so-called metal wire drawing process is to obtain a layer of macro fingerprint surface with uniform thickness distribution on the surface of the workpiece through the back and forth mechanical relative movement and chemical corrosion of the metal surface by abrasive materials. Compared with other surface treatments, the wire drawing treatment can make the metal surface get a non-mirror-like metallic luster, just like silk satin, which has a very strong decorative effect, so as to play a beautiful and anti-erosion effect, so that the product has both fashion and technology elements. , so the wire drawing treatment has more and more market recognition and wide application. The wire drawing process can be used on stainless steel, aluminum, copper, iron and other metal products. Drawing classification The processing methods of wire drawing include manual wire drawing and mechanical wire drawing. This article focuses on mechanical wire drawing; Common mechanical drawing methods are as follows: 1. Flat-pressed abrasive belt drawing: Flat wire drawing is a very common drawing method. The workpiece is fixed on the mold, and the grinding belt runs at high speed. There is a pneumatically controlled pressure block on the back of the belt that can move up and down. The machined surface is brushed. 2. Non-woven roller brush drawing The workpiece is conveyed by the conveyor belt through the non-woven roller brush, and the roller brush rotates at a high speed to draw the surface of the workpiece. During wire drawing, two methods of roller brush vibration and roller brush non-vibration can be used. At the same time, different processing speeds can be used to produce lines of different lengths. This method can be suitable for large-area drawing, and the drawing surface can have a certain curvature, and even small protrusions such as text logos. At the same time, two kinds of drawing lines can be produced; 3. Wide abrasive belt drawing This drawing method is the most traditional drawing method, used for flat drawing, especially suitable for sheet metal processing. 4. Unintentional grinding and drawing This is the way of wire drawing by means of centerless grinding. The abrasive products used are non-woven braid wheels or abrasive belts. Suitable for round tubular workpieces such as handle grips, etc. The thread pattern drawn in this way is usually a short thread pattern, and the length of the thread pattern is related to the rotational speed of the workpiece, the rotational speed of the abrasive product and the abrasive product itself. 5. Polishing machine drawing The nylon wheel is driven by the speed of the machine, and the product is polished by manual technology. Suitable for irregular electroplating products.
Automatic Sheet Metal Deburring Polishing Machine For Cutting Stamping Parts 5
Title goes here.
No.1: After hot rolling, annealing, pickling and descaling. The surface of the treated steel sheet is a dull surface, somewhat rough.

No.2D: It is better than N0.1, and it is also a dull surface. After cold rolling, annealing, descaling, and finally light rolling with rough rolls.

No.2B: This is the most commonly used in architectural applications, except that after annealing and descaling, a final light cold rolling with a polishing roll is performed, the other process is the same as 2D, the surface is slightly shiny, and can be polished.

No.2B Bright Annealed: This is a reflective surface that is rolled with polished rolls and final annealed in a controlled
atmosphere. Bright annealing still retains its reflective surface and does not produce scale.

No. 3: represented by 3A and 3B. "
3A: The surface is uniformly ground, and the abrasive grain size is 80-100.
3B: The rough surface is polished, and the surface has uniform straight grains. Usually, it is polished on the 2A or 2B board with an abrasive belt with a particle size of 180-200.

No.4: One-way surface finish, not very reflective, this finish is probably the most versatile in architectural applications. The process steps are firstly polishing with coarse abrasives, and finally grinding with abrasives with a particle size of 180.

No. 6: It is a further improvement of No. 4. It is polished with a Tampico polishing brush in abrasive and oil media. 4 surfaces. This surface finish is not included in "British Standard 1449", but is available in American Standard.

No.7: Known as bright polishing, it is polishing the surface that has been ground very finely but still has scratches.
Usually a 2A or 2B plate is used, with a fiber or cloth polishing wheel and the corresponding polishing paste.

No.8: Mirror polished surface with high reflectivity, often called mirror finish because it reflects a clear image. Continuous polishing of stainless steel with a fine abrasive, followed by a very fine polishing paste.

Surface finish level 14 = Ra 0.012
Surface finish level 13 = Ra 0.025
Surface finish level 12=Ra 0.050
Surface finish level 11 = Ra 0.1
Surface finish grade 10 = Ra 0.2
Surface finish grade 9 = Ra 0.4
Surface finish grade 8 = Ra 0.8
Surface finish grade 7 = Ra 1.6
Surface finish grade 6 = Ra 3.2
Surface finish grade 5 = Ra 6.3
Surface finish grade 4 = Ra 12.5
Surface finish level 3 = Ra 25
Surface finish class 2 = Ra 50
Surface finish class 1 = Ra 100
The above surface roughness units are all μm, that is, microns.
